PowderShield™ Adjustable Vibration De-powdering table

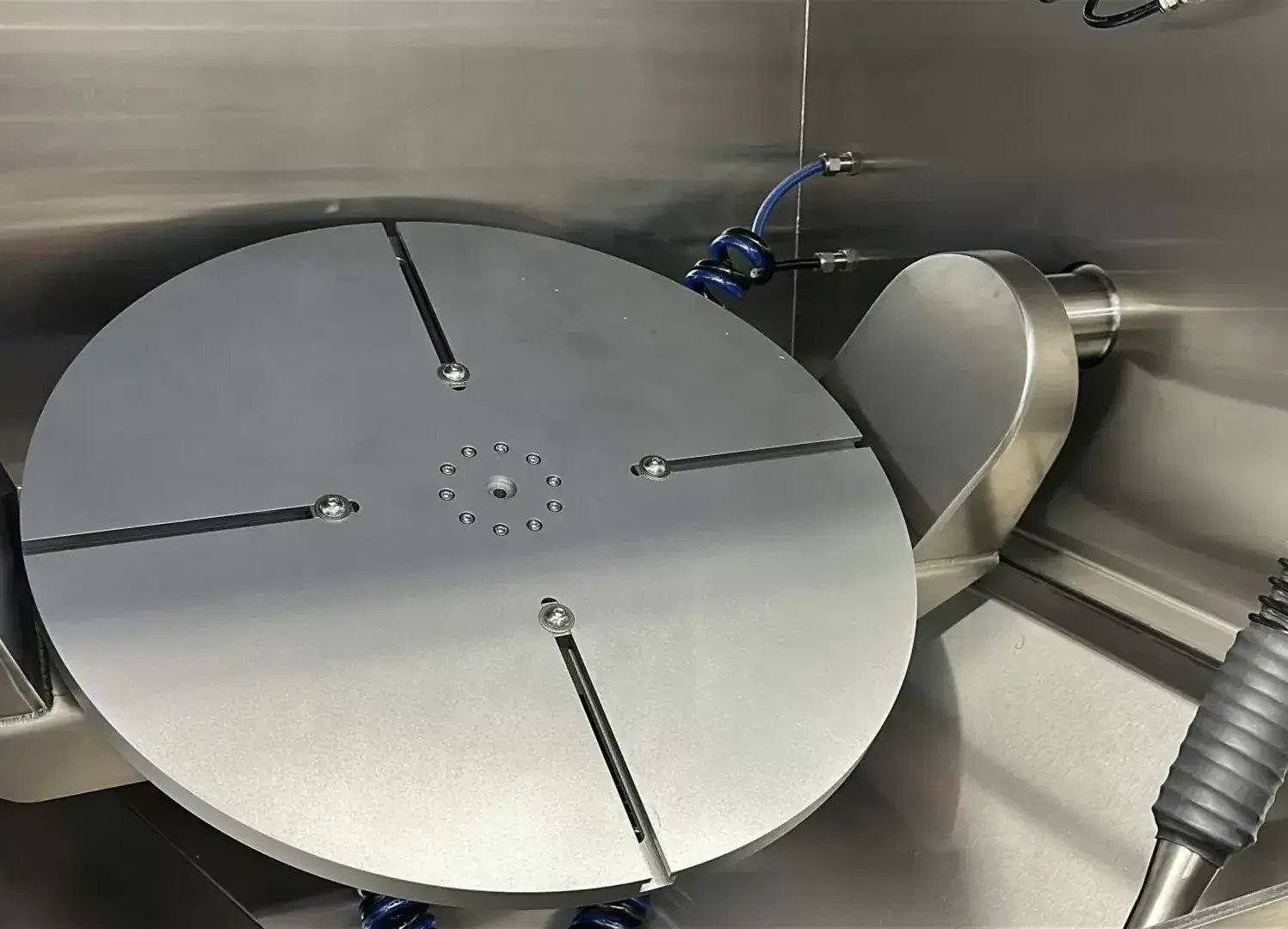

The PowderShield™ Rotating Table is equipped with an adjustable pneumati vibration feature, designed to efficiently remove excess powder from 3D printed parts. The dual axis rotating and tilting table allows the operator to easily access all sides of the printed part, providing full 360-degree rotation as well as up-and-down movement.

Designed to optimally fit a standard 300 x 300 mm build plate, PowderShield™ can nevertheless accommodate larger plates depending on the geometry of your parts.

This versatile design ensures that even complex or oversized parts can be processed with ease.

Streamline Your Workflow – Recycle, Reuse, Print Again

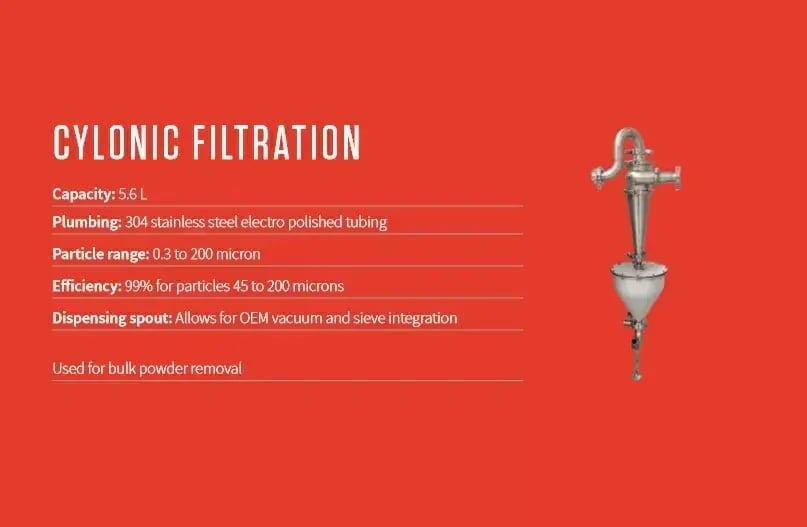

PowderShield™ design is equipped with a gravity-fed chute to efficiently collect excess powders. Using an integrated cyclonic filtration system, PowderShield™ captures the excess powder in the filtration unit, allowing it to be easily recycled and reused for future prints.

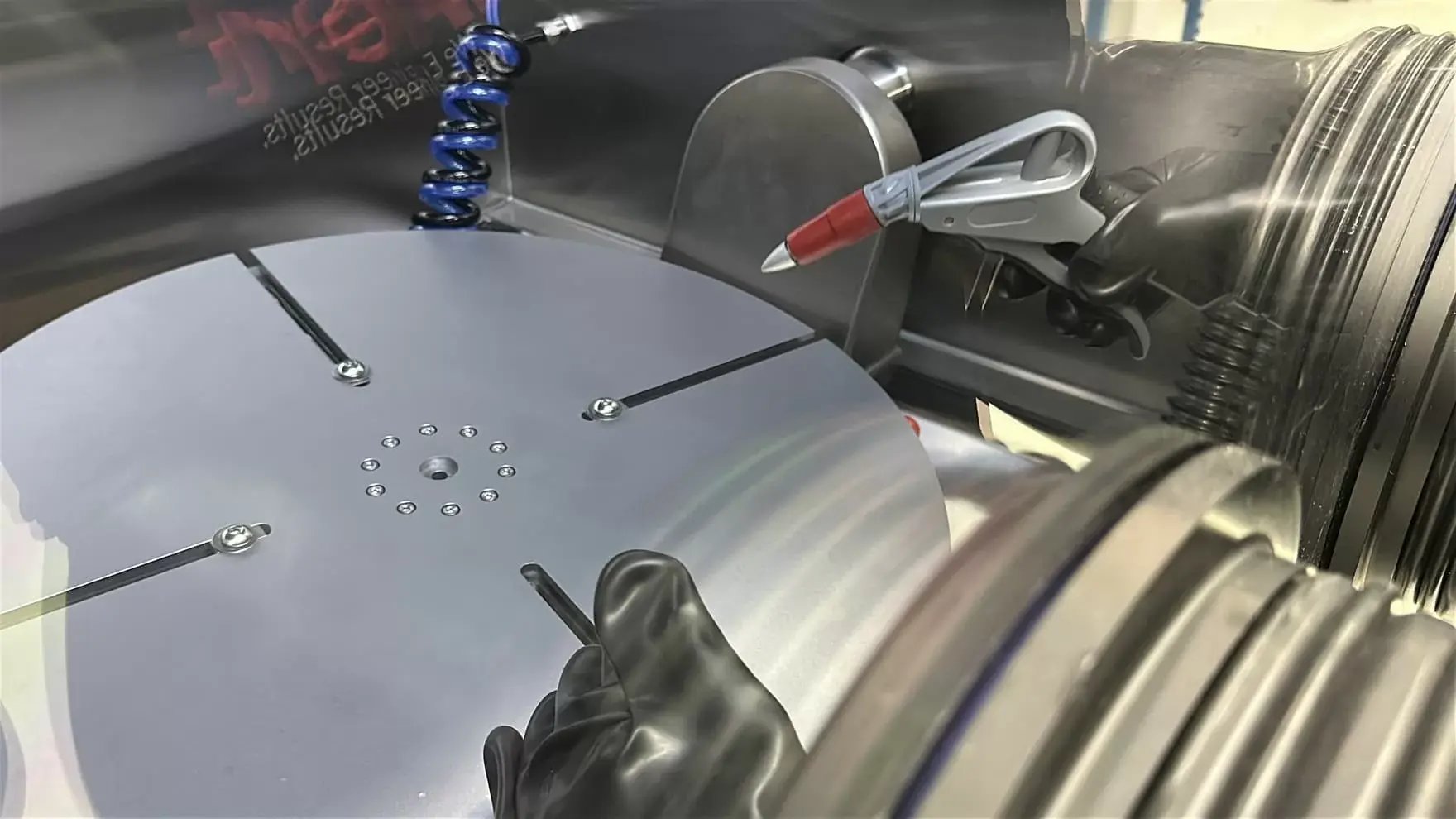

For more precise powder removal, the system includes a high-flow vacuum hose that lets operators manually direct the suction to specific areas, ensuring accurate removal of excess powder. For difficult-to-reach areas, the gas gun (compatible with either nitrogen or argon) allows users to blast away powder and clean the surface of the printed part effectively.

The recirculation module circulates inert gas to create a unidirectional flow within the enclosure reducing suspended particle, minimizing powder accumulation on the window.

PowderShield™ Protects operators

When it comes to safety, Inert does not compromise. Powdershield™ priorities health and safety by containing potentially harmful powders, reducing the risk of inhalation and exposure.

PowderShield is the only de-powdering station equipped with an inflatable gasket and an interlock handle, ensuring the front panel cannot be opened during operation. The inflatable gasket creates a perfect seal between the enclosure and the door, eliminating the risk of powder contamination in your room or laboratory.

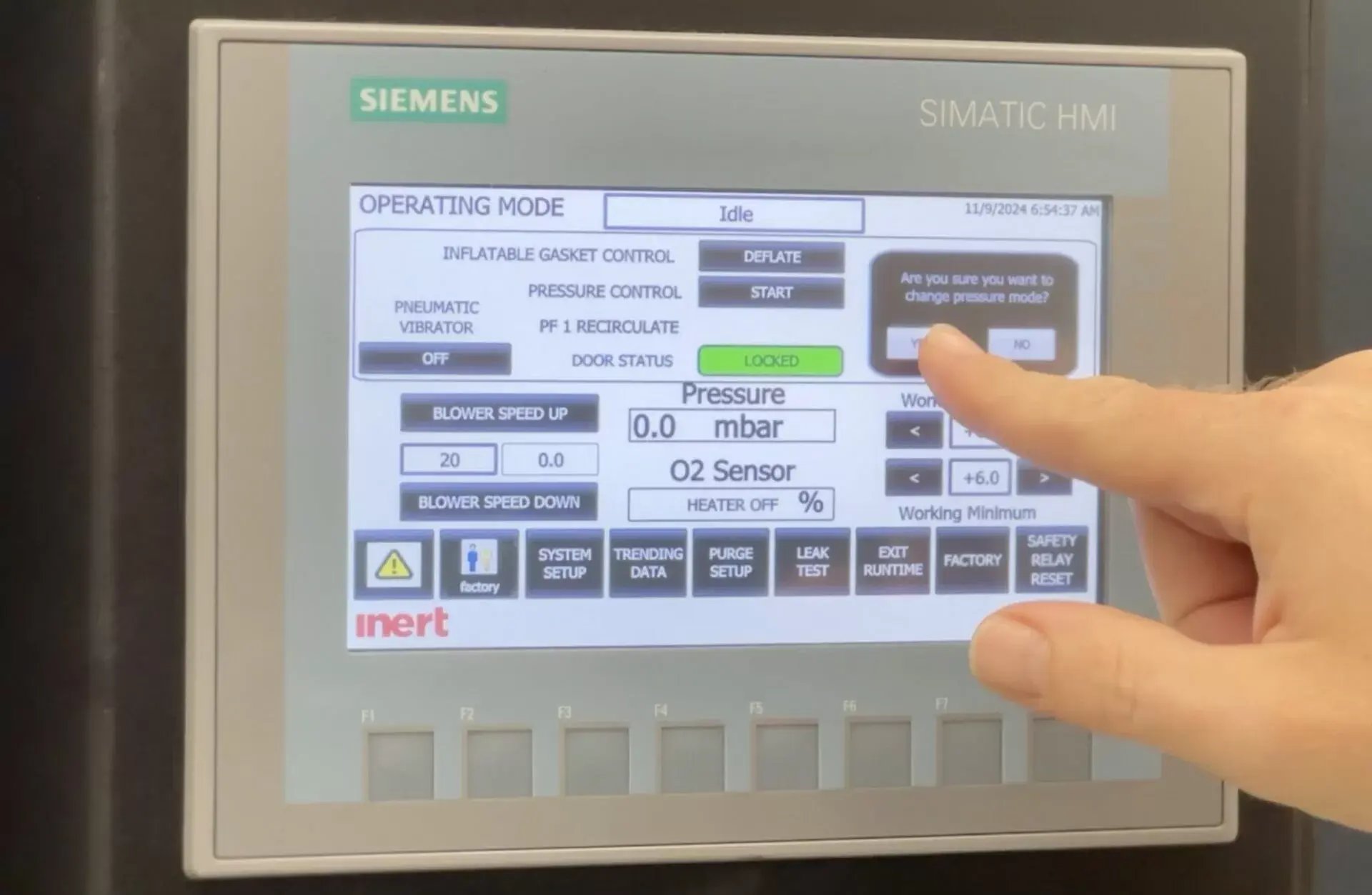

The lockable front panel is controlled by a PLC touchscreen that monitors the pressure inside the enclosure. The two-step verification process adds an extra layer of safety, preventing mishandling and ensuring safe operation at all times.


TECHNICAL DATA	GBA999100	GBA999101	GBA999102	GBA999103
▼ External Dimensions (WxDxH)	1177 x 1113 x 1939mm	1177 x 1113 x 1939mm	1650 x 907 x 1939mm	1714 x 907 x 1939mm
▼ Internal Dimensions (WxDxH)	724 x 778 x 781mm	724 x 778 x 781mm	724 x 778 x 781mm	724 x 778 x 781mm
▼ Internal Finish	Painted Black, RAL 7034	Painted Black, RAL 7034	Painted Black, RAL 7034	Painted Black, RAL 7034
▼ External Finish	304 Stainless Steel, #4	304 Stainless Steel, #4	304 Stainless Steel, #4	304 Stainless Steel, #4
▼ Voltage-Frequency	200-240 V / 50-60Hz	200-240 V / 50-60Hz	200-240 V / 50-60Hz	200-240 V / 50-60Hz
▼ Control System	PLC-Based	PLC-Based	PLC-Based	PLC-Based
▼ Front opening door for easy load and unload of printed part	Included	Included	Included	Included
▼ Door has latching mechanism that allows for hermetic seal when closed	Included	Included	Included	Included
▼ Safety interlock door switch	Included	Included	Included	Included
▼ 2x 8" round glove ports with ESD gloves	Included	Included	Included	Included
▼ 0.3 Micron filter	Included	Included	Included	Included
▼ LED light	Included	Included	Included	Included
▼ Perforated floor	-	-	Included	-
▼ Gravity-fed powder chute	Included	Included	Included	Included
▼ Closed-Loop powder reclamation system with internal antistatic vacuum hose	-	-	Included	Included
▼ Foot pedal for choosing between suction hose or funnel	-	-	Included	Included
▼ Siemens PLC controls with 7" colour touch screen	Included	Included	Included	Included
▼ Blow off gun	Included	Included	Included	Included
▼ 0-25% Electrochemical sensor EOS-4 Oxygen analyser	Included	Included	Included	Included
▼ Manual tilt table with rotation and pneumatic vibration	-	Included	-	Included
