AcryLab Acrylic Glove Box

For Research, Pharmaceutical, Medical and Industries.

Our Australian made Acrylic glove boxes have been designed to protect the people/samples in their laboratory and their work, as well as to preserve the environment.


Our knowledge and experience give us the strength to offer our standard AcryLab Glove Boxes, but we can also custom made our Acrylic Glove Boxes to satisfy any needs and requirement for any type of applications.


The AcryLab design is based on a modular platform that allows users to expand their existing industrial and lab gloveboxes to meet increasing workspace requirements. The Glovebox expansion may include additional antechambers for thru-flow work processes, cold storage freezers, process vacuum ovens and furnaces, and a full line of accessories.  The AcryLab models include a series of glovebox chambers with lengths of 650 mm and 1500 mm. We also take custom-built orders according to your needs.



ACR4

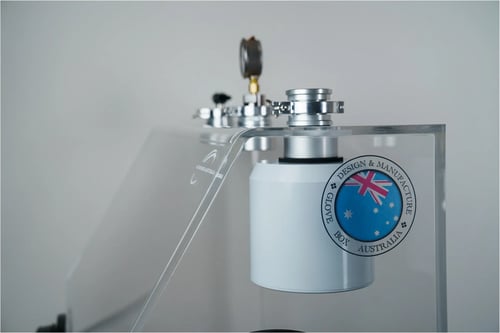

ACR3
ACR2
AcryLAB logo
GBA MANUFACTURE IN AUSTRALIA
Request a Meeting
Get a Quote
ico-cruma-proteccion
Transparency

Acrylic is highly transparent, offering clear visibility inside the glove box. This allows operators to easily monitor and manipulate samples without distortion, which is crucial for tasks that require precision.

ico-cruma-flexibles
Lightweight

Compared to other materials like stainless steel or glass, acrylic is lightweight. This makes acrylic glove boxes easier to transport, handle, and set up, particularly in laboratory environments where mobility or flexibility is required.
ico-cruma-ahorro
Chemical Resistance

Acrylic has good resistance to a wide range of chemicals, especially solvents, which makes it suitable for use in environments where exposure to chemicals is common. It helps maintain the integrity of the glove box and ensures safe containment.
ico-cruma-ahorro-energetico
Cost-Effective

Acrylic glove boxes tend to be more affordable than alternatives made from more durable or specialized materials (like stainless steel or polycarbonate). This makes them an economical option for labs that need basic containment solutions without compromising visibility.

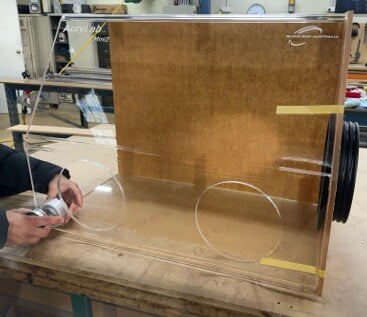

ACR10
Dimensions
Picture1 (6)
Working Aera
Picture2 (5)

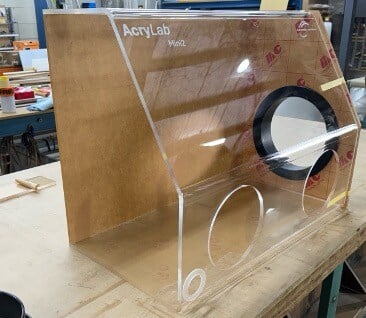

ACR11
Main Application Fields
jacomex-application-recherche_laborateoires-1920-768x432

Research
Laboratories

jacomex-application-pharmaceutical-1920-768x432

Pharmaceutical
Medical

green+cosmetics+canva1

Cosmetics
Applications

jacomex-application-industry-1920-768x432

Industrial
Applications

Chemistry, organic and inorganic    -     Material science, rare earth​     -     Biology and microbiology     -     Physics     -     Fine chemistry and petrochemistry​     -     Nano Powder
ACR3
ACR2

Advantages

Manual purging

 All glovebox chambers made of Acrylic

 User friendly and simple operation

 Modular platform

 Multiple options available based on requirement

 Custom made glove box according to needs

Possible Applications

Organometallic Chemistry

 Organic synthesis

 Hydrophilic chemical handling

 Medical devices

 Metabolic research

 Catalyst handling

 Animal testing

 Medicine synthesis

And More...

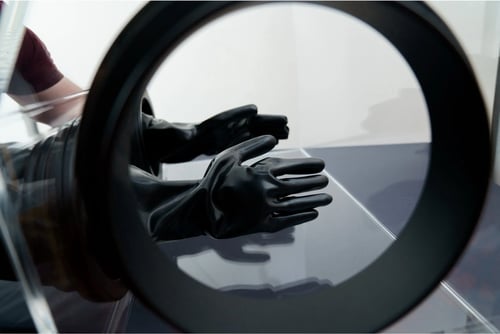

ACR4

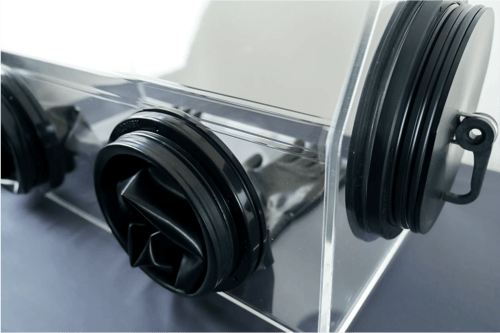

ACR1

Models and Technical Specifications
A wide range to ensure the air remains clean and health is unaffected

Model AcryLab Mini2 AcryLab Mini3 AcryLab Mini4 AcryLab Maxi2 AcryLab Maxi3 AcryLab Maxi4
Internal Sizes (width/depth/high) 780x480x580 980x480x580 1180x480x580 980x830x830 1280x830x830  1480x830x830
External Sizes (width/depth/high) 800x500x600 1000x500x600 1200x500x600 1000x850x850 1300x850x850 1500x850x850
Glove Ports 2 3 4 2 3 4
Filter number 1 to 2 1 to 2 1 to 2 1 to 2 1 to 2 1 to 2
Gloves Neoprene Neoprene Neoprene Neoprene Neoprene Neoprene
Internal volume of the cabinet 0.22m3 0.27m3 0.33m3 0.67m3 0.88m3  1.02m3
Inlet Valve 1 1 1 1 1 1
Outlet Valve 1 1 1 1 1 1
Pressure Gauge 1 1 1 1 1 1
Safety Valve 1 1 1 1 1 1
Weight 15 Kg 20 Kg 25 Kg 20 Kg 25 Kg  30 Kg



Serial Equipment
Full Equip Glove Boxes

Equipment Description
Acrylic Box 100% Acrylic Material. Possible to use other material upon request
Glove Ports Diam. 186mm
Gloves 186mm Diam Butyl Gloves
Inlet Vale 3 ways valve

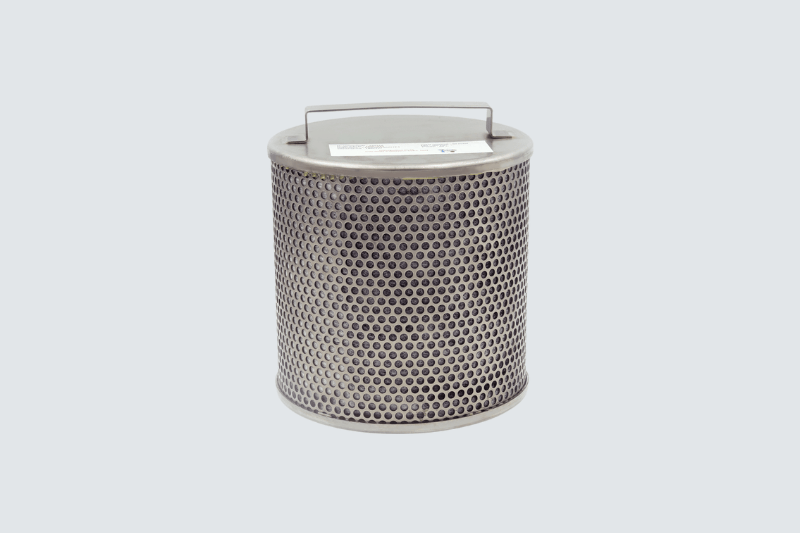

HEPA Filter HEPA 14 Filter
Outlet Valve 3 ways valve
Pressure Gauge To detect the level of filter saturation
POM Door Diam. 250mm (Optional: 300mm diameter)



Optional Equipment
Details that matter

Equipment Description
Square Antechamber 400mm x 300mm x 500mm Square antechamber with doors
Tubular Antechamber 250mm Diam. x 400mm long with POM Doors (Possible Diam. 300mm upon request)
Steel Stand Support stand in Epoxy coated steel (depending of glove box sizes)

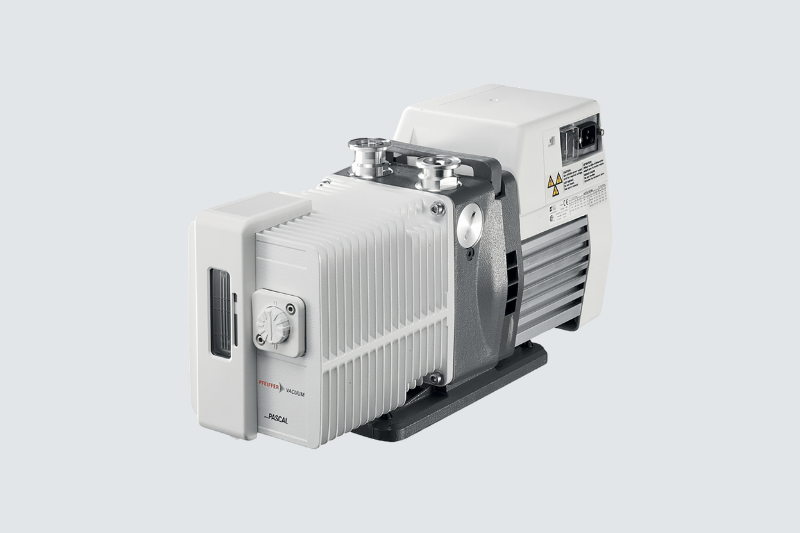

Vacuum Pump 3m3/h RV pumps (Option: 3m3/h Dry pump upon request)
Air re-circulation system Contact us for more details

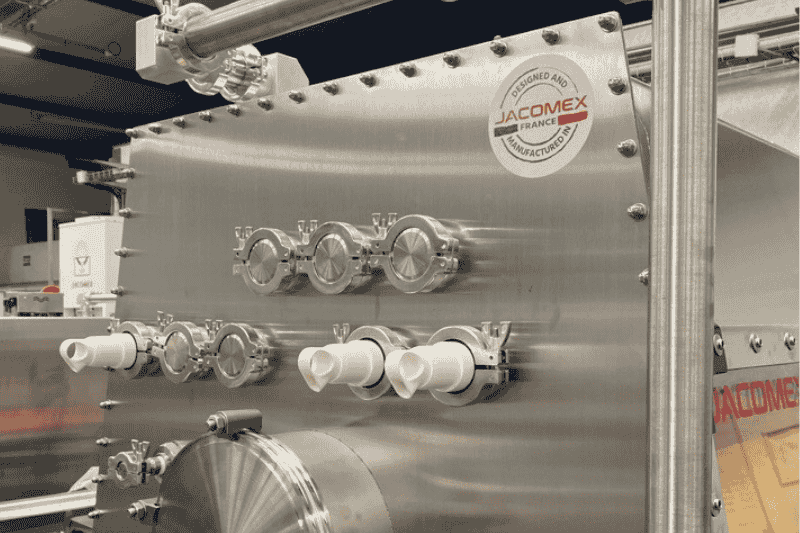

Feedthroughs Check out our list of Feedthroughs
And More Contact Us for any request or custom design



Equipment and features

Recommended accessories for AcryLab glovebox
