G[Mega] Glove Box Workstation
g-mega-modex-box-3d-glove-box
Screenshot 2023-03-12 at 3.57.33 pm
Left Side Banner1
Left Side Banner2
picto_iso10648-2
Jacomex-Made-in-France[99]

G(Mega) is a containment system exclusively made to measure and developed by our R&D department for all industrial applications and production..

It is fully modular and designed to reach volumes up to 150m3 and facilitates the integration of robots and process machines.

Already in service in sectors such as additive manufacturing and aeronautics, it is suitable for all industrial processes which must be carried out under controlled atmosphere.

P(Sys)-IV systems are neutral gas purification units particularly suitable for G(Mega) because of their great ability to eliminate moisture and oxygen.

APPLICATIONS

picto-jacomex-industrie

0

DIMENSIONS

modele-boite-gants-g-mega

ADVANTAGES
▼ Based on Meccano® system, robust, dedicated to industrial  manufacturing
▼ Combinable elements: can yield endless custom solutions  based on standard components
▼ Easy-removable mechanical design for:
     • fast and easy maintenance of internal production machines and tools
     • installations relocation
     • components recycling in case of reconfiguration or extension




POSSIBLE APPLICATIONS...
▼ Additive Manufacturing
▼ Aeronautics

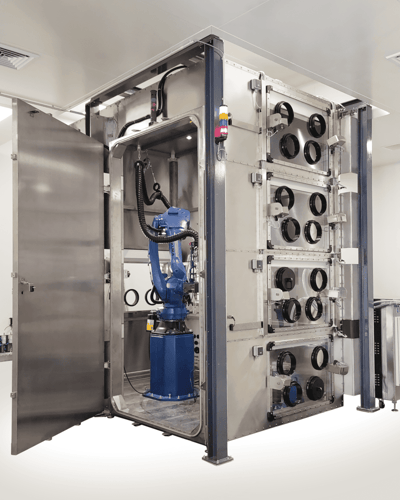

▼ Integration of industrial robots
▼ Machines and processes securing under reducing atmosphere
▼ Cowling of installations or assembly-lines under anti-oxidizing and/or low-hygrometry atmosphere

TECHNICAL DATA
▼ Tightness class 1 according to ISO 10648-2 compatible with purified inert atmospheres
▼ Stainless steel profiles X2CrNi18-9 (US 304 L)
▼ All dimensions by 100 mm increments in all 3 dimensions
▼ Volumes until 150m3 – Unlimited lengths
▼ EPDM gaskets
▼ Panels: polymer – mineral laminated glass – stainless steel
▼ Access and transfer: vacuum chamber, doors, hatches, intervention airlock...

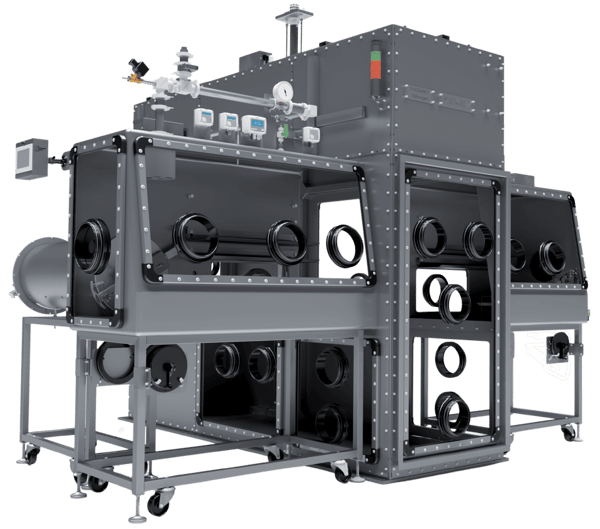

g-mega-modex-box-3d-glove-box
