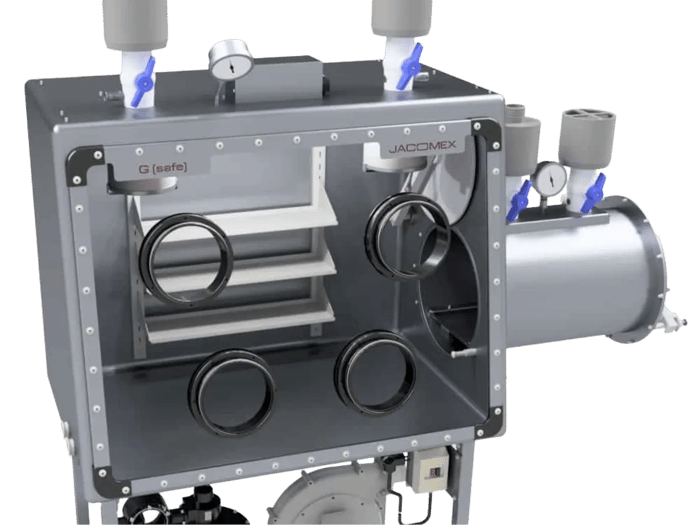

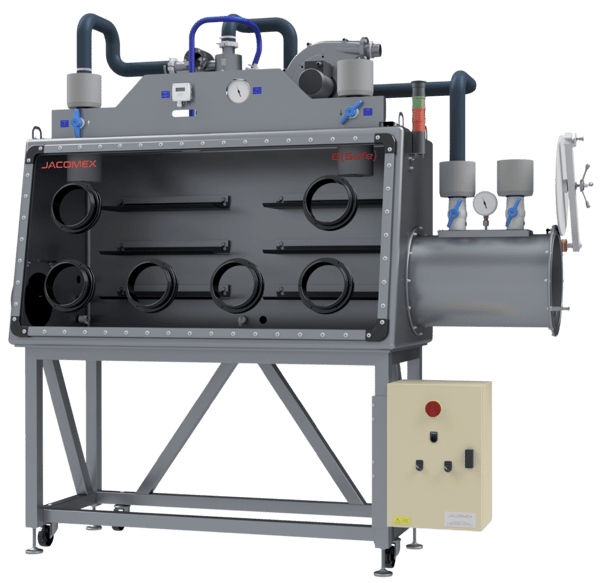

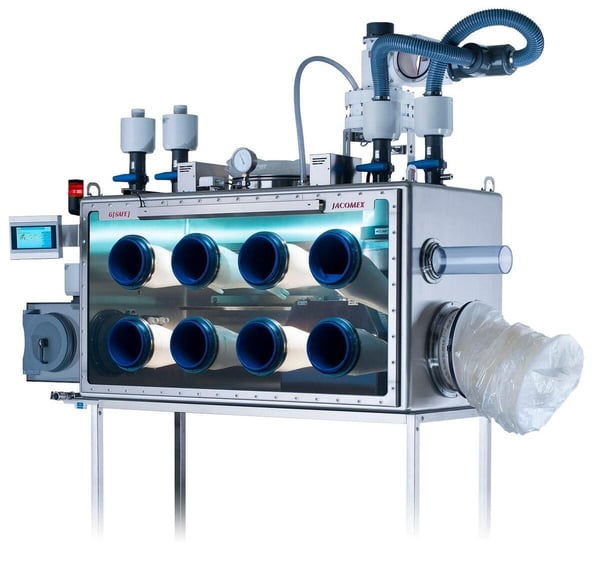

Glove Box Australia - Jacomex Nuclear G[SAFE] Glove Box Workstation

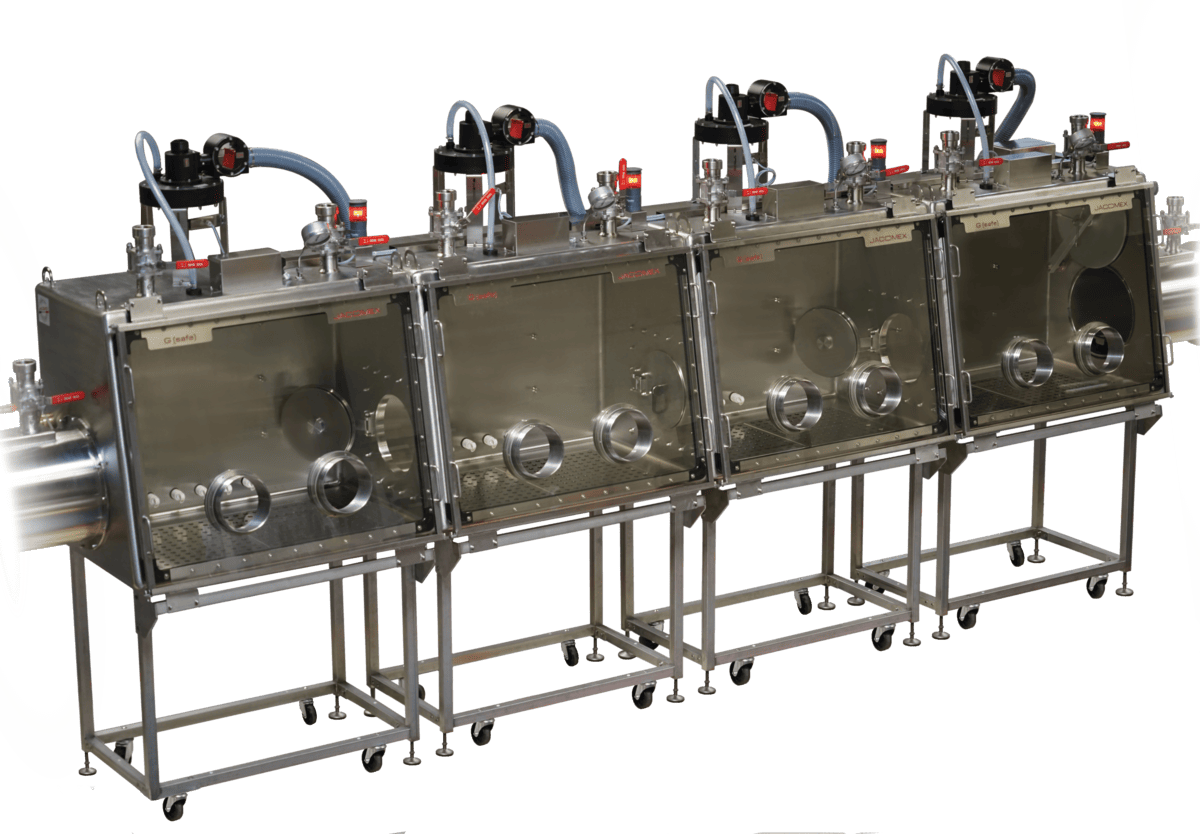

GSAFE Isolators And Gloveboxes Standard Features

- ISO 10648-2 highest leak tightness class 1
- Stainless steel (304L or 316L shell and chassis)

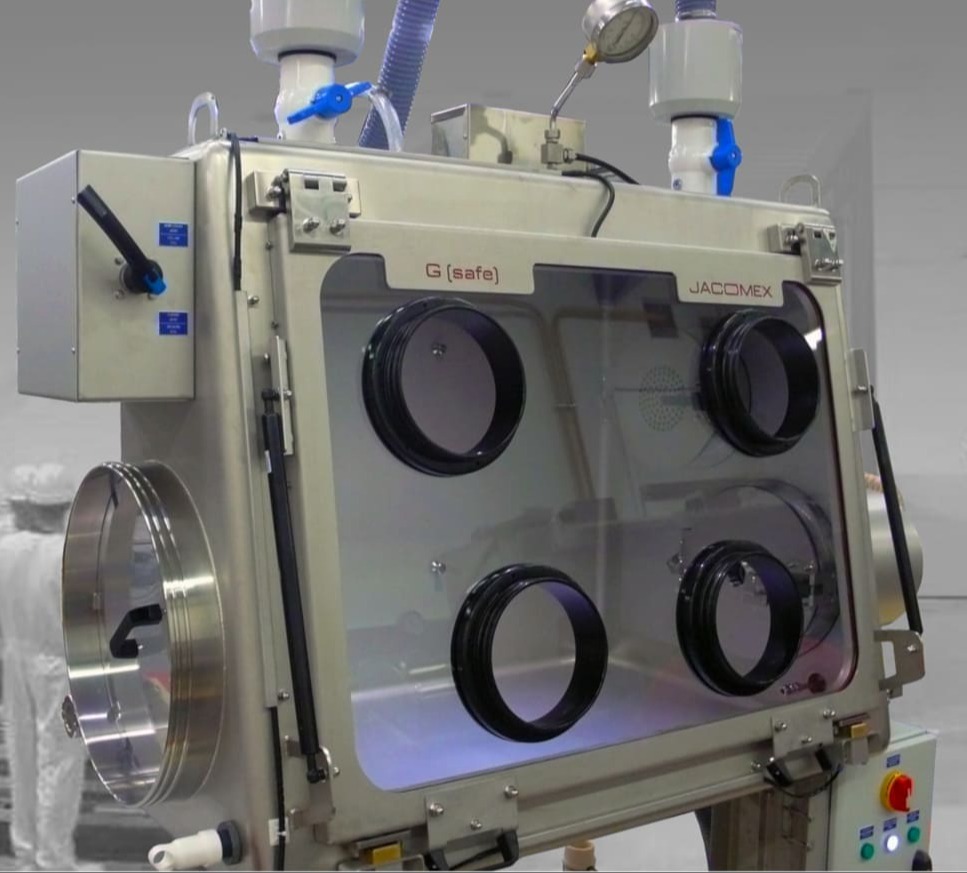

- Enhanced de-contaminability and cleanability
- Automated mechanical ventilation regulation & safety valves
- Double inlet and outlet HEPA filtration
- Bag In Bag Out filter boxes (BIBO)
- Ventilated airlock systems
- Industry standard feedthroughs, docking systems, transfer and waste bags

Beyond The Standard For Critical Applications

- Dedicated JACOMEX project and engineering team
- Safety Substantiation (Nuclear, seismic, ventilation)
- Human Factor, Organization and Technological Risk assessment
- Automation, data log and transfer
- Compliance with ATEX environment in/out
- Gamma / Neutron radiation shielding
- Acids resistant coatings (ALAR)
- Over Under Pressure Protection Systems (OUPPS)
- Active confinement for accidental conditions
- Special filtrations: Acids, iodine, gases, ULPA

ADVANTAGES

Flexible and easily upgradable according to use

Customised project follow-up:
- Technical support, 3D drawings simulation, technical and ergonomic configuration approval

Versatility

Level of security adaptable according to products dangerousness and manipulated substances

Optimal protection of the operator and environment. Thanks to JACOMEX Vales

The wide range of equipment and options allow to answer all your requirements

NUCLEAR: RADIOPROTECTION

Design
• Stainless steel: AISI 316L
• Design: rounded corners

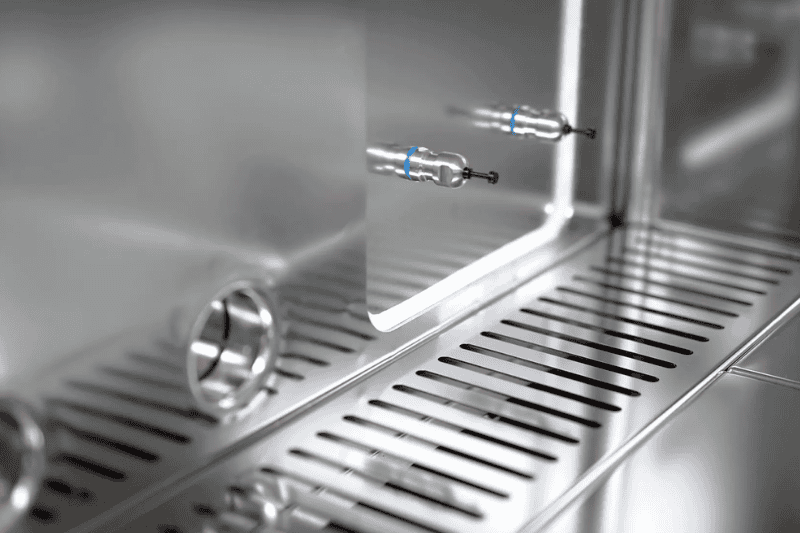

• Surface finish: polished – electropolished

Transfer systems

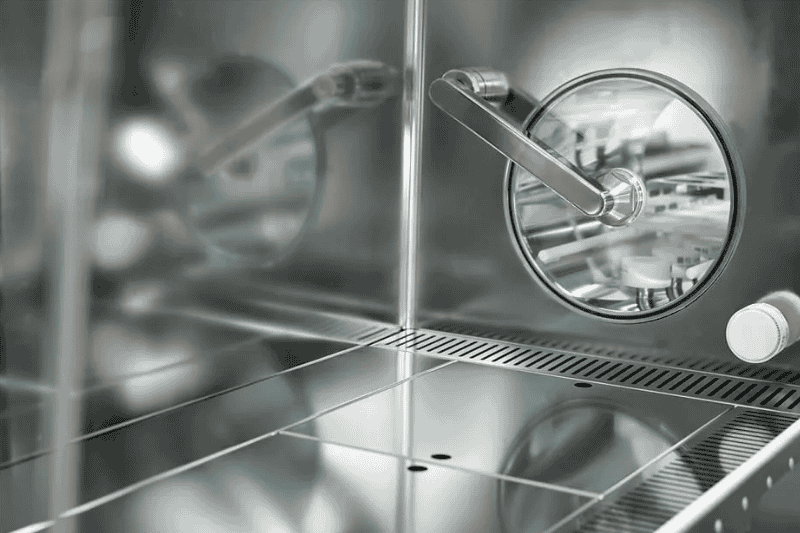

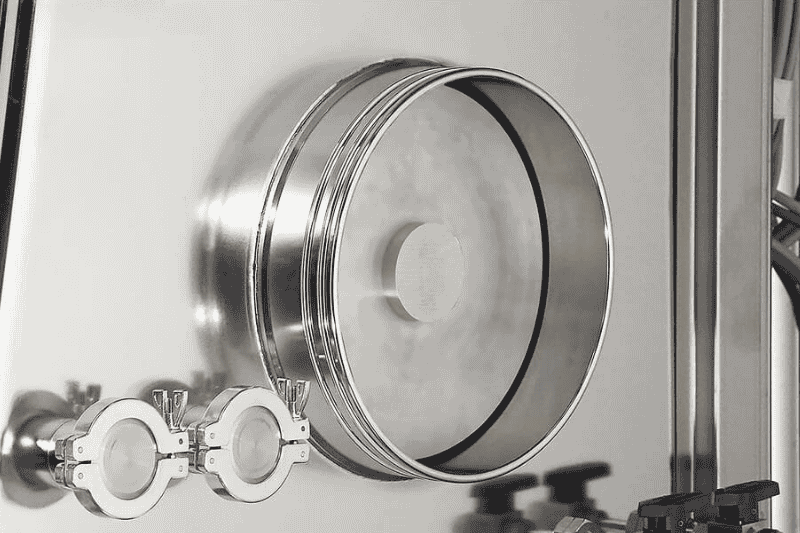

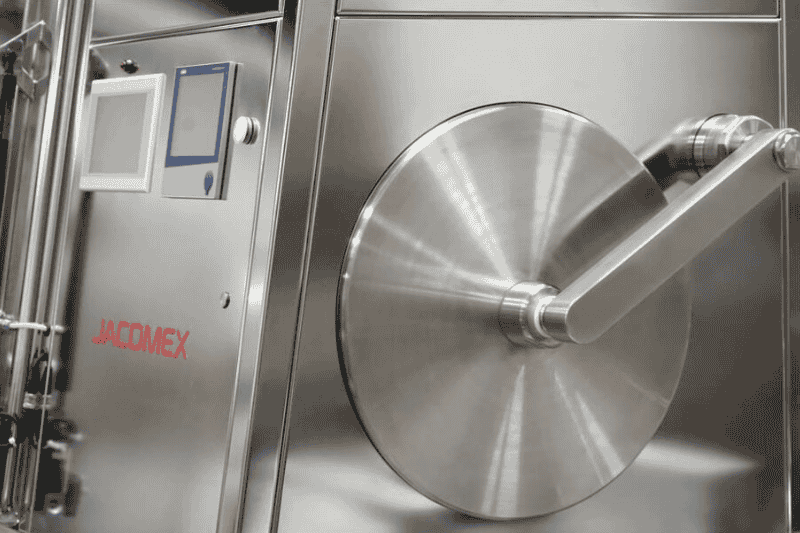

• Airlock chamber – Bag rings - RTP

Protection equipment
• Particules: H13 filters nuclear grade
• Radioiodine: activated charcoal, Ki impregnated
• Biological protection: according to activity level and process – glass panels or lead-acrylic
• Operator safety: pressure control and safety valve

INDUSTRY - RESEARCH: CMR, TOXIC FUMES, MICRO POWDERS, NANOPARTICULES

Design
• Stainless steel: AISI 316L
• Design: rounded corners
• Surface finish: polished – electropolished

Transfer systems
• Airlock chamber – Bag rings - RTP

Protection equipment
• Particules: filters H13-H14
• Solvents: activated charcoal
• Toxic fumes : activated charcoal (specific impregnation)
• Working panel: quick-opening mineral glass lifting panel or polycarbonate sapphire
• Operator safety: pressure control and safety valve

TECHNICAL DATA

Tightness Class 1 according to ISO 10648-2 (oxygen method)
Leak rate < 5.10E-4/h (0.05 Vol%/h)

Gaskets: Nitrile (modular design)
EPDM (rounded corners)

Chamber: Stainless steel X2CrNi18-9 / AISI 304 L (option 316L)

Front panel: mineral laminated glass

1 pressure gauge

Roof lighting (LED spotlights)

Height adjustable stainless-steel shelves

1 electrical feedthrough 230V + 2 ISO KF blank feedthroughs

Gloves: Butyl - CSM - EPDM - Polychloroprene - Latex

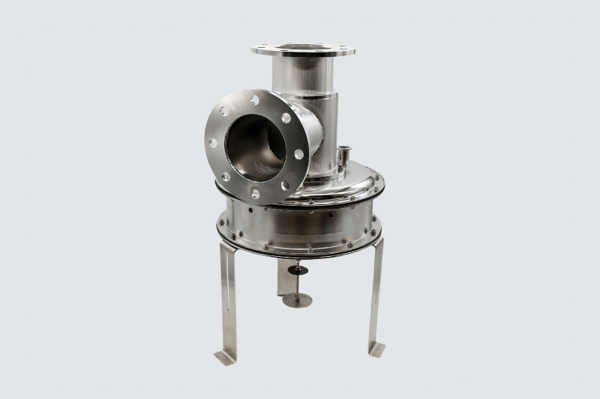

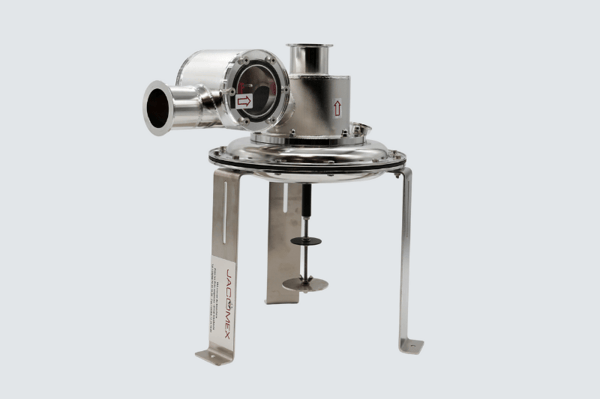

Negative pressure is automatically maintained and a security flow is automatically triggered in case of containment breach (regulation valve option)

USE:
Glove boxes under vacuum in air

PURPOSE:
Automatic and continuous regulation of the vacuum inside a containment enclosure
Automatic compensation of filter clogging
Indication of the filter clogging level
Provide a safety flow in case of accidental rupture of sealing
Alarm triggering or any safe action through dry contacts

TECHNICAL SPECIFICATIONS:
- Diaphragm valve, mechanical system without electrical connection.
- Safety in the event of a breach of confinement: maximum automatic opening limiting the risk of back scattering to the operator.
- Possibility of alarm in the event of a fault.
- With or without flow indicator.

USE:
Glove boxes in depression under nitrogen or argon
Glove boxes in depression under purified controlled atmosphere
Vacuum insulators under neutral gas

PURPOSE:
In normal functioning: the tightness of the enclosure and the gas circuit is preserved with a hermetic valve
In accidental functioning: ensure a safety flow through an opening in case of leakage
Alarm triggering or any safe action through dry contacts

TECHNICAL SPECIFICATIONS:
- Diaphragm valve, mechanical system without electrical connection.
- Valve closed, gastight.
- Possibility of alarm in the event of a fault.
