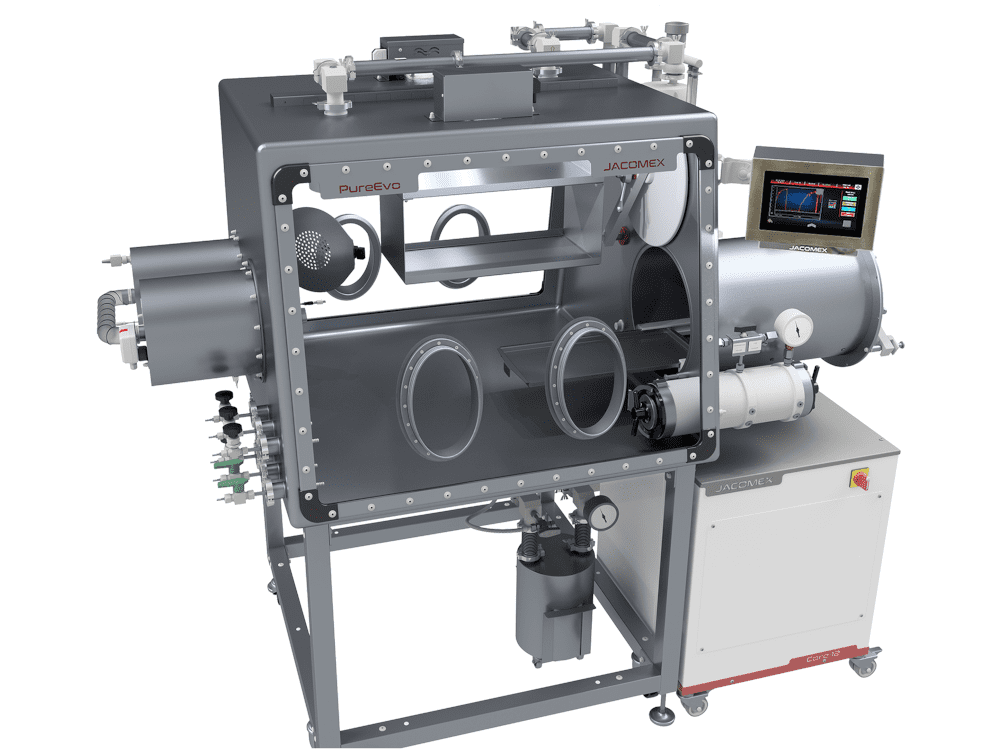

PureEvo Glove Box Workstation

For Research, Pharmaceutical, Medical and Industries.

PureEvo Glovebox - State of the art purified glovebox fitted for most demanding applications

Standalone closed loop gas purification system Core 12 (and up).
Maintain O2 and H2O <1 ppm.
Available in 6 standard sizes + infinite customization potential, single sided, double sided and more.
Working gases: Nitrogen or Argon.
Positive or Negative relative pressure operation.
(optional) Ventilation containment breach operator & environment safety features.
(Optional) Rounded corners for optimized cleanability and decontamination.

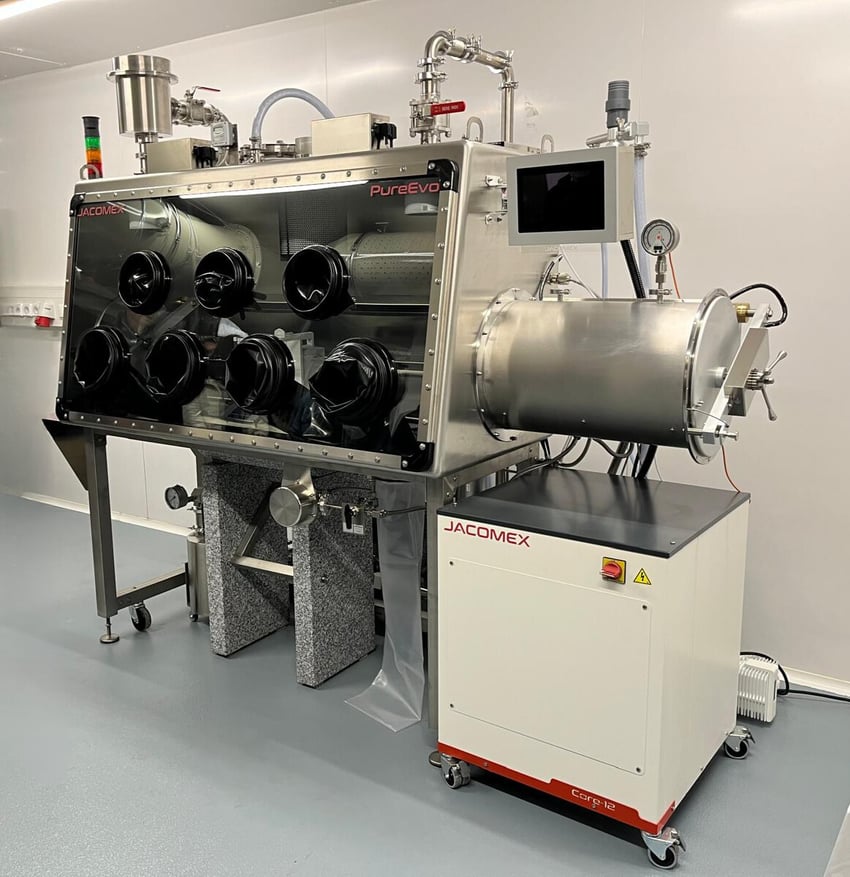

PureEvo_Jacomex4-1

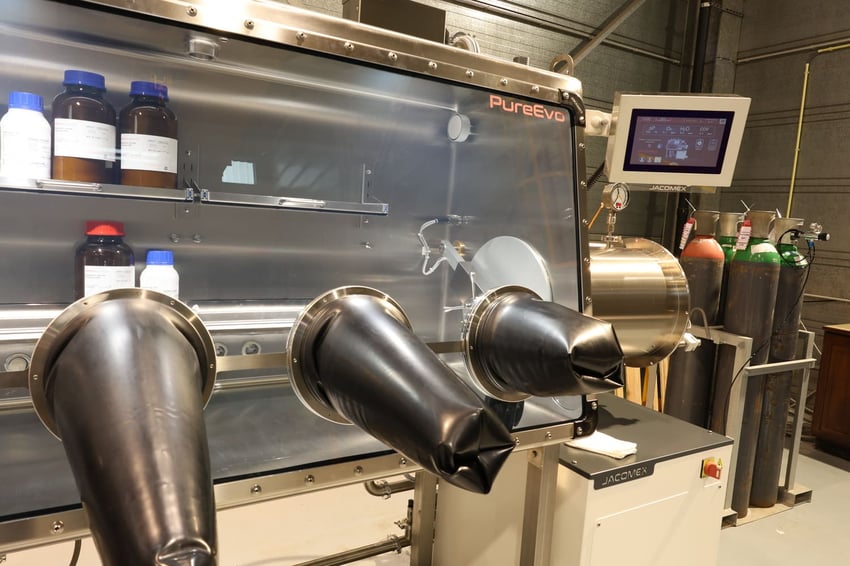

PureEvo-Jacomex

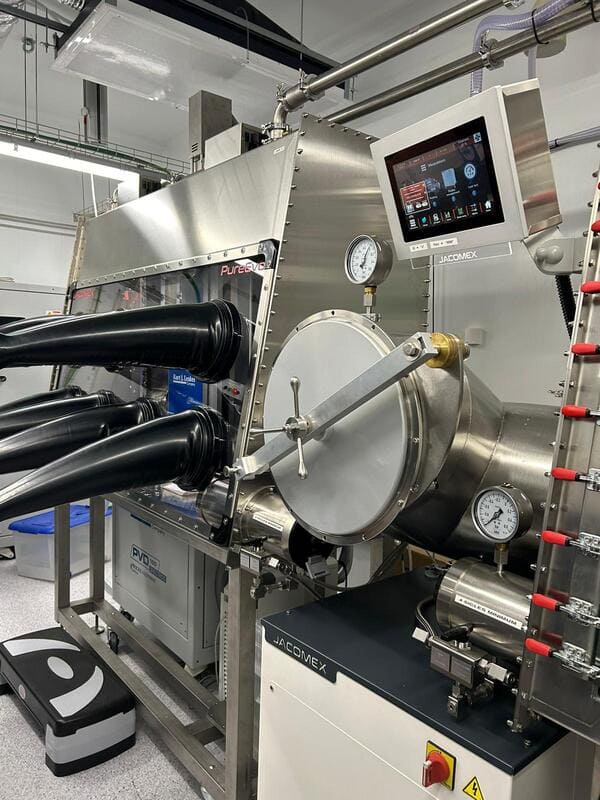

PureEvo-Jacomex2
logo Jacomex-web (002)
Download our Glove Box catalogues:
Photo Catalogue
Glove Box Australia - PureEvo Glove Box Catalogue
Screenshot 2023-03-11 at 10.52.20 pm

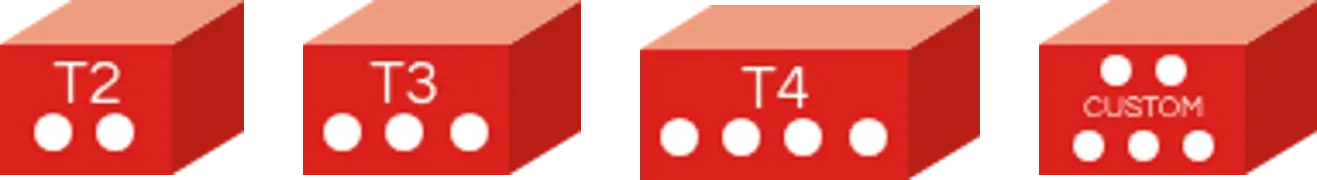

Dimensions
Working Aera
Picture21 (1)

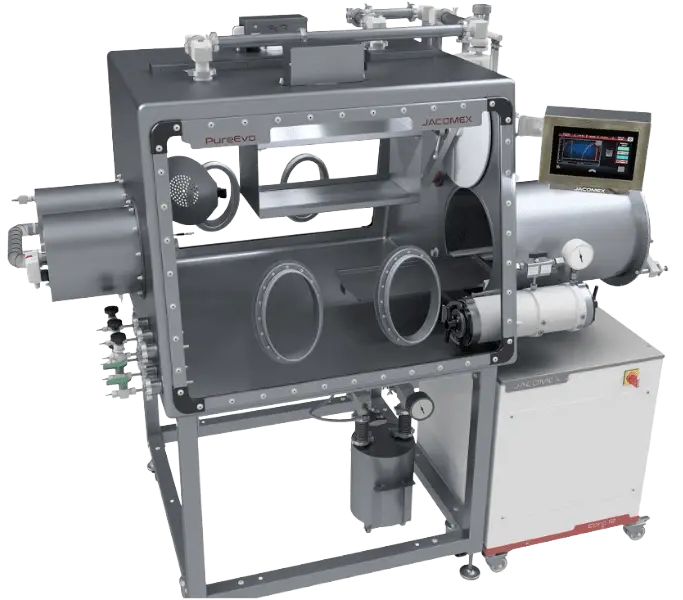

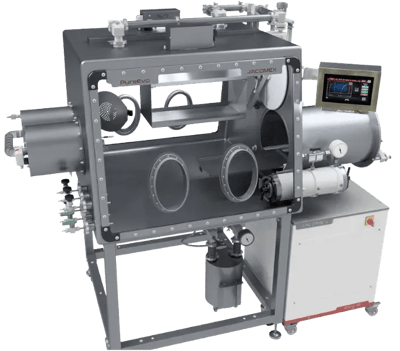

Glove Box Australia - PureEvo Glove Box

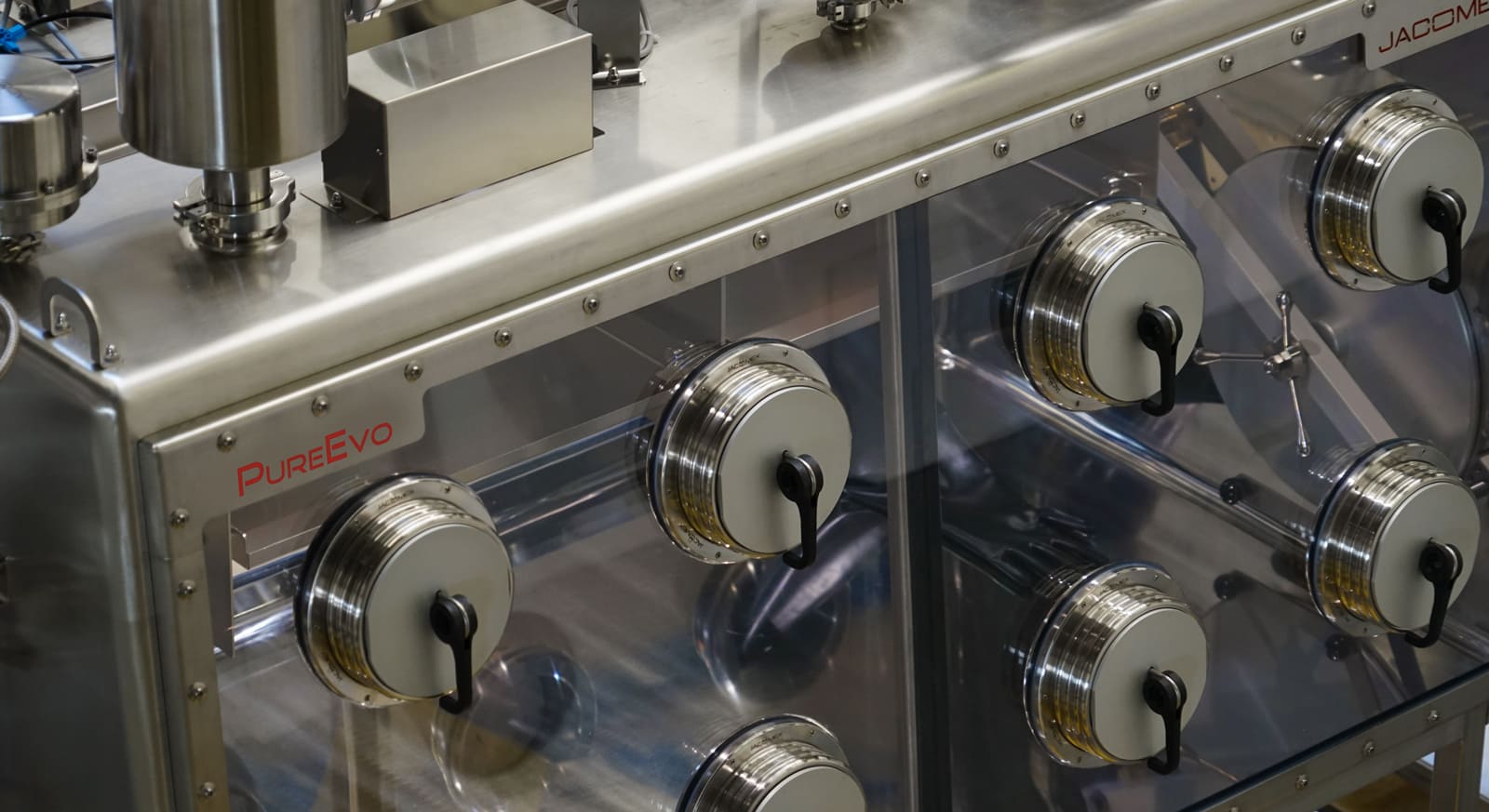

PureEvo-nuclear-Jacomex

The PureEvo glovebox encompasses superior features and fully customizable configurations to meet the most stringent demands and quality assurance requirements (Nuclear, ATEX, Pharma).

In addition to being able to be configured with all our specialty equipment, Jacomex PureEvo projects benefit from engineered solutions to integrate bespoke processes (internally designed or third party), thus providing our customers fit for purpose and optimized systems in advanced research and industrial settings.

The PureEvo is the ultimate solution, empowering our customers to control the containment enclosures inner atmospheres for their most sensitive and processes.

For personnel and environment protection, the PureEvo borrows unique rugged and proven Jacomex features that are implemented for decades in the most demanding industries (like nuclear and radio-pharmacy).

PureEvo_Jacomex4-1

A Glovebox Designed for Complex Industrial and Scientific Projects

Its exceptional performance, design and operation meet the requirements of all specific industrial and scientific projects. This glove box is ideal for every stages of the preparation, development or characterization of materials under pure atmosphere, for processes in the development phase or at the pilot stage; it offers all the flexibility necessary for the integration of machines and equipment and is fully able to meet the needs of our most demanding customers such as engineers, researchers and scientists who focus on configurable controls, automation, safety, special finishes, custom design and of course ultra-pure atmosphere.

The PUREEVO is a tailor-made glove box whose modularity, flexibility and performance make this glovebox the perfect model for achieving complex projects. In addition to these advantages, the PUREEVO model also gives access to a wide range of options and Jacomex equipment and it is a sure way to meet the most stringent constraints in terms of atmospheric quality. No less than three standard models of purification units, both single and double line, can be used in conjunction with the PUREEVO.

PureEvo-Jacomex

Advanced Workstation with Cutting-Edge Control and Purification Systems

The PUREEVO is the solution to all problems. It is available as a single-sided or double-sided workstation, in both standard and custom modules.
It is equipped with an autonomous purification unit, an automatic pressure regulation without vacuum pump, a transfer airlock with automatic cycle, a 21m3/h double-stage vacuum pump, a purification unit single line with automatic regeneration and H2O and/or O2 analyzers. Two dual-line purification systems are also available as an option.

Its high-definition, easy-to-read 10” touch screen provides greater comfort and extensive functionalities. The newly developed HMI interface allows intuitive and easy-to-use navigation. Adjustable parameters and continuous recording with plotted data (H20, O2, Pr, T) allow you to work efficiently in complete safety. The PLC interface integrates support and maintenance management for optimal trouble-free operation. Lastly, a configurable information indicator brings enhanced flexibility to the system.

PureEvo-Jacomex2

Eco-Energy Mode: Sustainable and Long-Lasting Performance

Naturally, the model comes equipped with our original Eco-Energy mode (Energy Saving Mode 24/24) as standard: In a process of reducing energy needs, respecting the planet and committing against obsolescence, Jacomex was the original designer of the Economic Operating Mode 15 years ago. This mode has been developed in order to increase the lifespan of the components and to prolong their reliability over time. Unlike some models on the market, our Energy Saving Mode 24/24 is continuously operational, not only in standby mode (excluding manipulations) but also in use (during manipulations).

Advantage

Versatility: flexible standard design

Customised project management - Information Folder

          Technical support, 3D drawings simulation, technical and ergonomic setup approval.

4 large-capacity purification models available: Core-12, Core-24P, Core-24S, P(sys)-IV

      - Processing of larger volumes, severe or tricky conditions, regenerations at widely spaced intervals

     - Purification loads among the most quantitative on the market for equivalent range.

  Pressure regulation without vacuum pump (positive pressure/negative pressure)

  Comfortable to use - Quiet

  Easy and accessible maintenance

  Long service life - Low operating costs

  Hazardous inert atmospheres: (operating in negative pressure): address us for designing a fitted security configuration (specific equipment recommended).

NEW HDMI INTERFACE - HD10" DISPLAY

Even larger for greater ergonomics

Intuitive navigation with a lot of user-friendly menus

Adjustable parameters, continuous recording and graphs

  Integrated PLC assistance and maintenance for clear and optimal operating and ease of use

  Configurable indicator light. All features on our separate brochure

Touch-panel-puresmart-dashboard

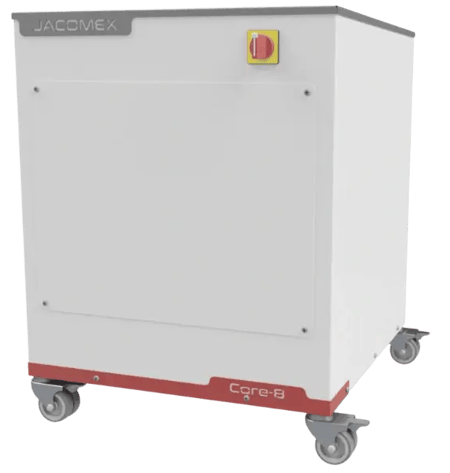

Glove Box Australia - Neutral Gas Purification Units Core8 (3)

POSSIBLE APPLICATIONS...

Materials physics and nanotechnologies

Powder processes

  Development of all-solid-state batteries and lithium alternatives

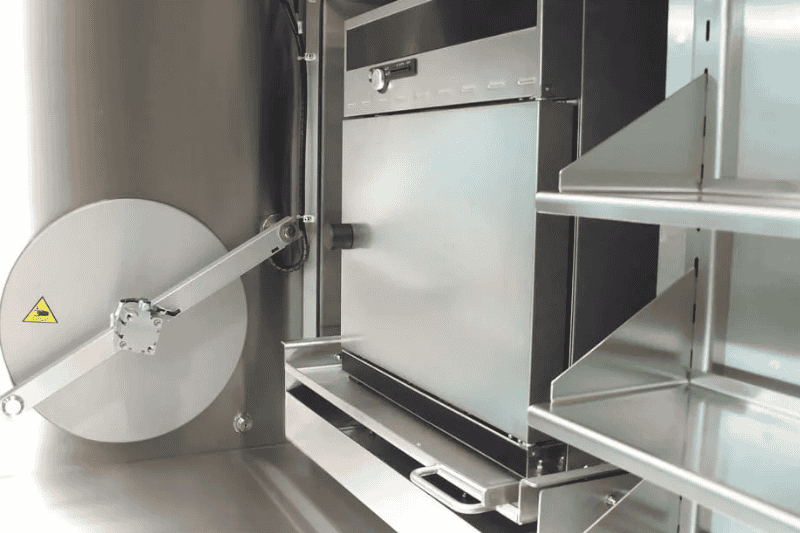

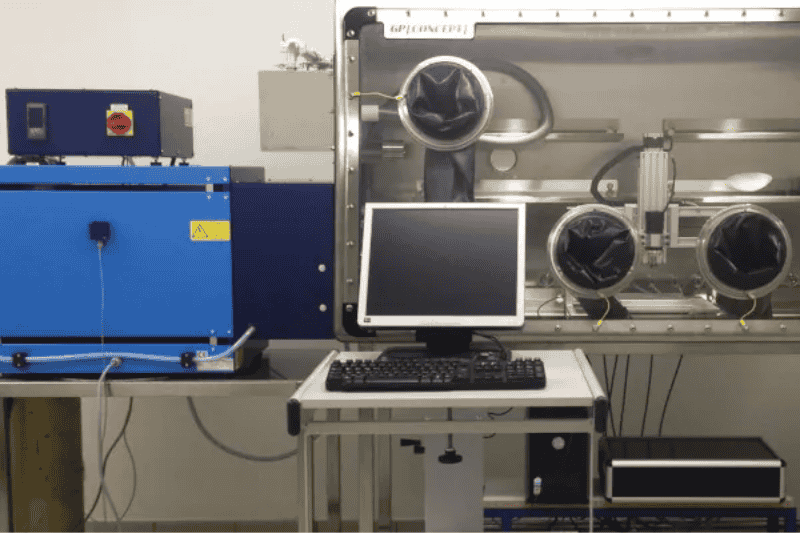

  Oven processes (treatment, sintering, annealing)

  Organic electronic materials: 2nd and 3rd generation solar cells (thin films, perovskites, multijunction, DSSC...), Quantum Dots, graphene and 2D materials.

  Welding of large parts in titanium and alloys for the aeronautical, naval and automotive industries

  Research and control of experiments on nuclear materials, sensitive to atmospheric components

Download our Glove Boxes catalogue:
Photo Catalogue
PureSmart Catalogue

 TECHNICAL DATA



Tightness Class 1 according to ISO 10648-2 (oxygen method)
- Leak rate < 5.10E-4/h (0.05 Vol%/h)
EPDM gaskets with high chemical resistance
Glovebox - vacuum chamber - piping: stainless steel X2CrNi18-9 (AISI304L)

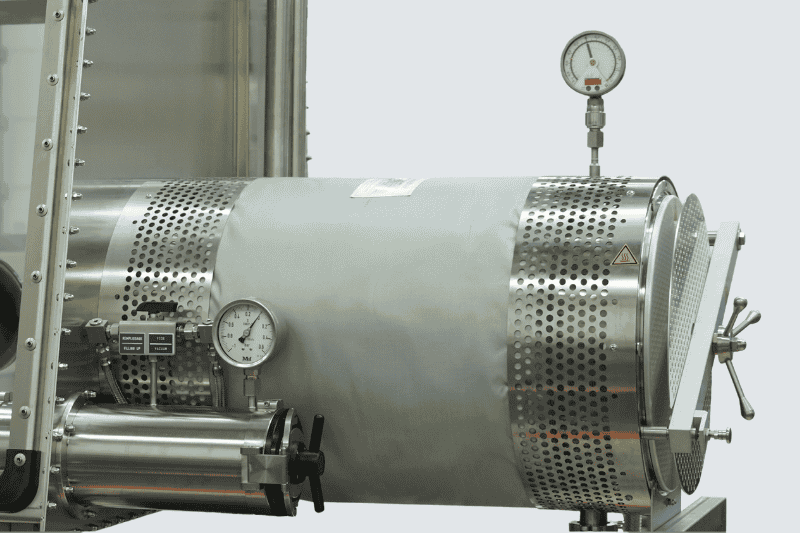

Manual vacuum chamber Ø 400 Length 600 mm
- Inner sliding tray - Removable rails
- Leak rate <10E-5mbar l/s
Front panel: sapphire polycarbonate - laminated mineral glass
Polymer glove rings Ø 220 mm - Antistatic gloves
Lighting from the ceiling (LED spotlights)
6 stainless steel shelves (height-adjustable)
1 electrical feedthrough 230V + 6 blank feedthroughs for ISO KF40
Automatic regulation (positive or negative pressure)
Remote stand-alone H2O - O2 purification unit
10“ HD colour touch screen: new intuitive menus, integrated assistance, user management, traceability, graphs and alarms...

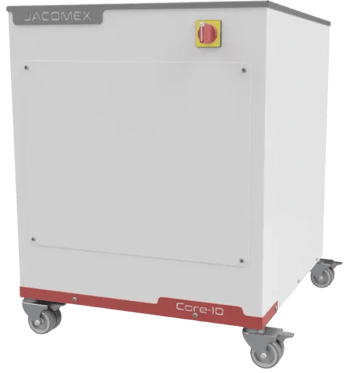

Glove Box Australia - Neutral Gas Purification Units Core12 (3)
PURIFICATION UNIT

Single-line H2O - O2 stand-alone purification unit
Leak rate <10E-5mbar l/s
Closed-loop circulation, Adjustable flow rate 0-120m3/h
Automatic regeneration
Regeneration N2 or Ar + 3-10% H2
Purification capacity Core-12
    • 45 L         O2
    • 1250 g     H2O

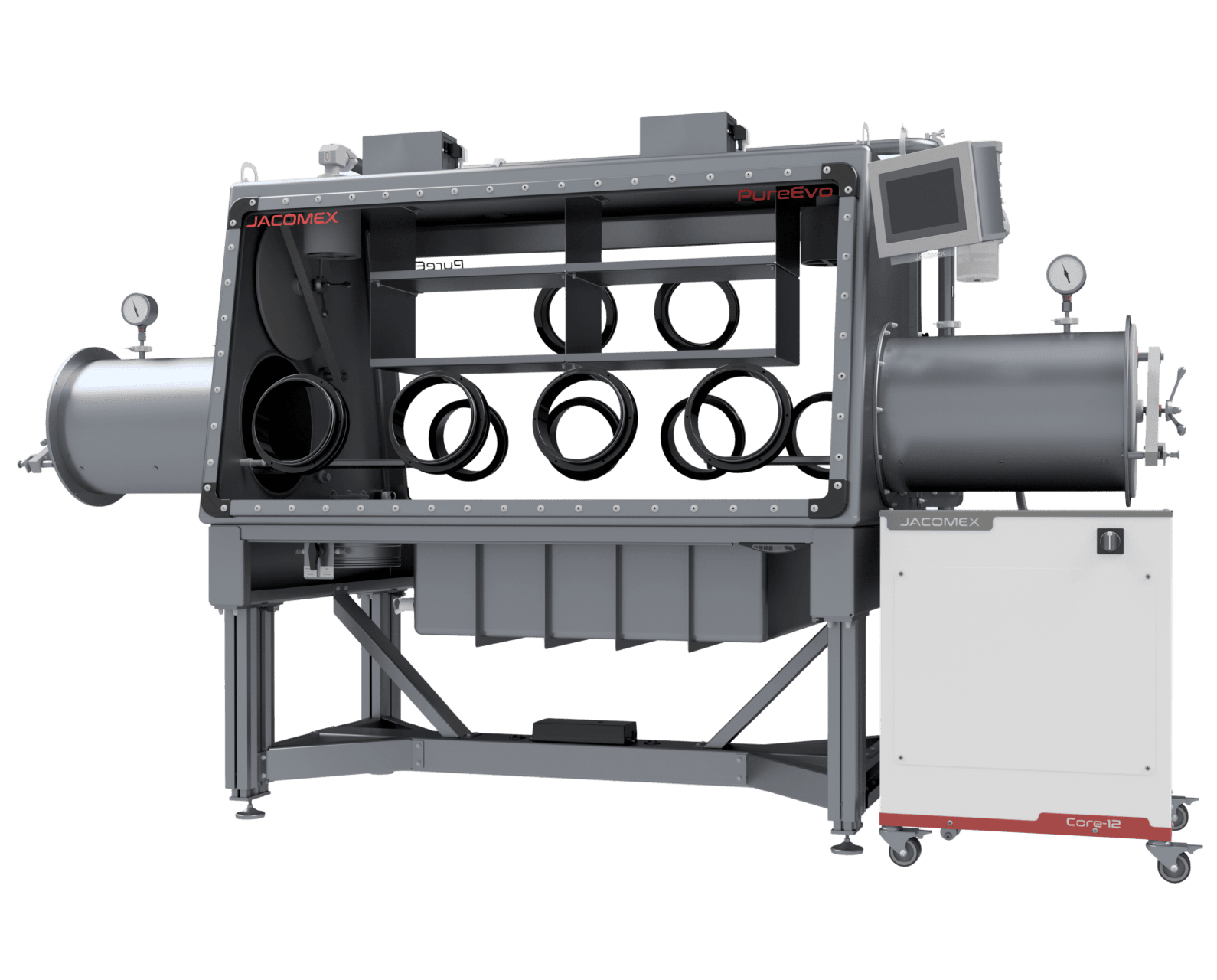

jacomex-pureevo-1920 (1)-1

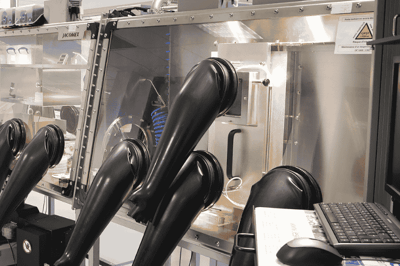

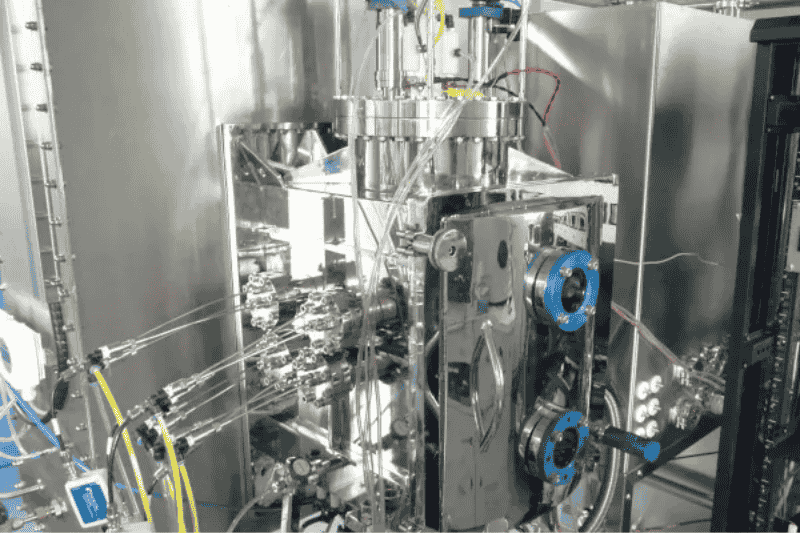

evaporator-interface-for-glove-box

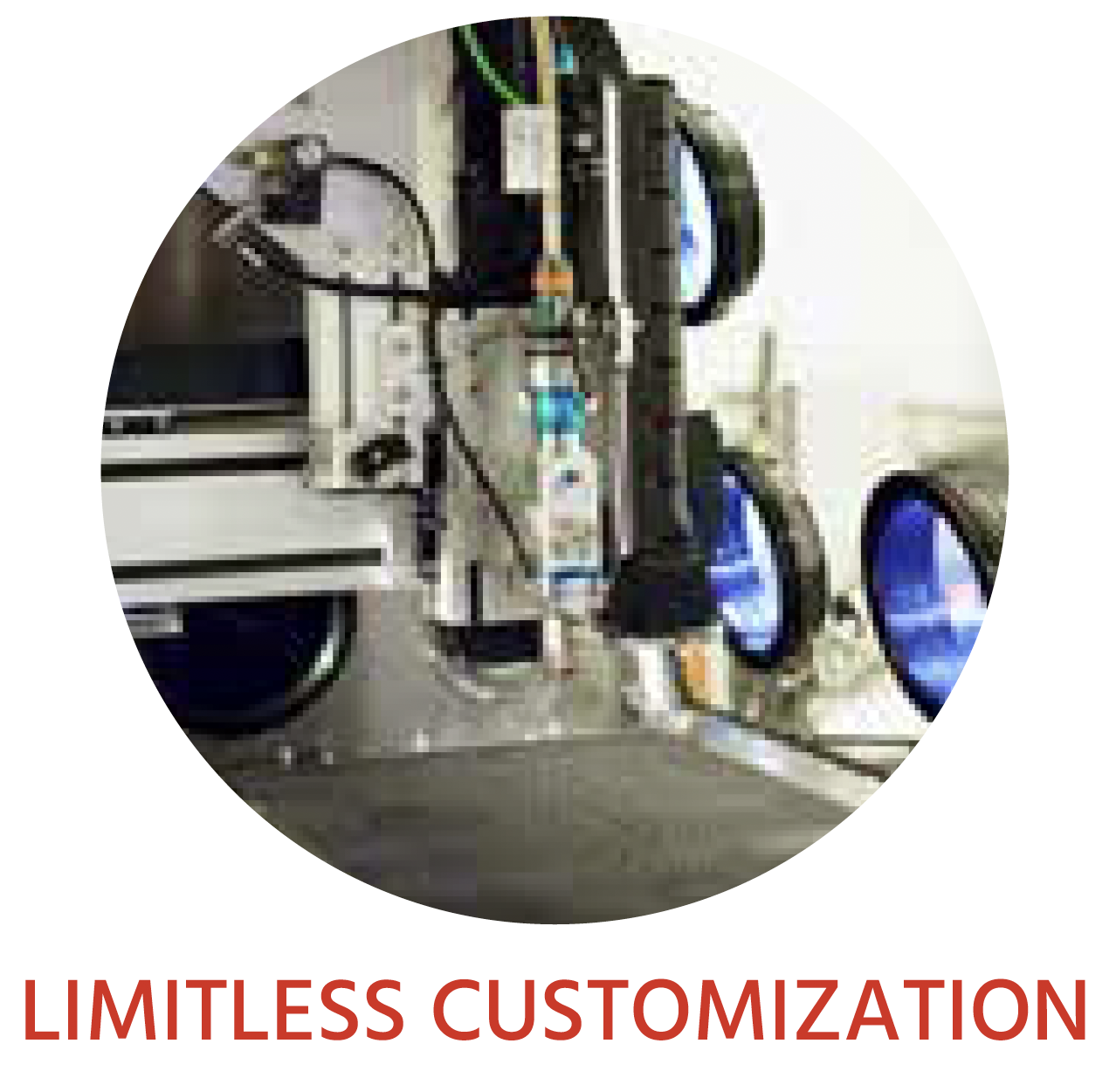

LIMITLESS CUSTOMISATION

Design and operating adapted to any specific or complex processes

Interconnectable glove boxes modules
Customised dimensions and shapes
100% compatible with all options and equipment at JACOMEX

Flexible and scalable design.

- Designed for the integration of simple and sophisticated machinery and instrumentation

Standard configuration and options

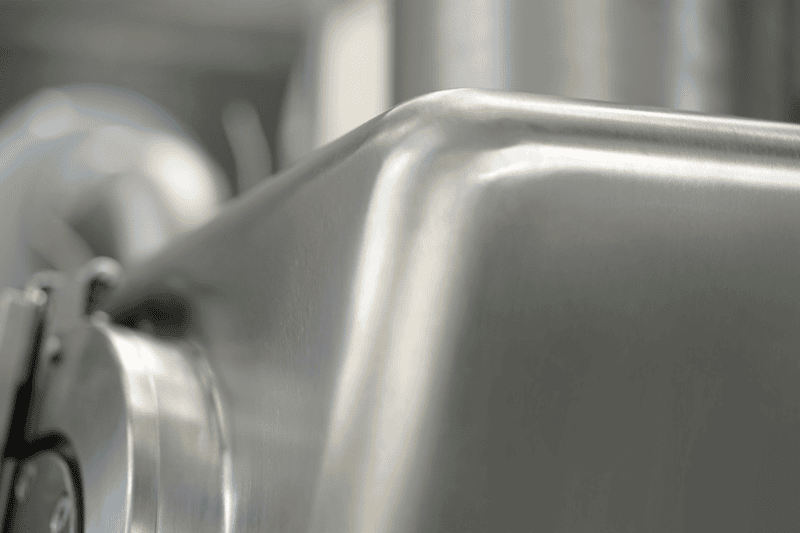

- Design: 100% removable - rounded corners
- Surface finish: satin - electropolished
- Stainless steel quality: AISI 304L - AISI 316L
                                       (1.4306)      (1.4404)

Feedthroughs - See our web shop



Equipment and features

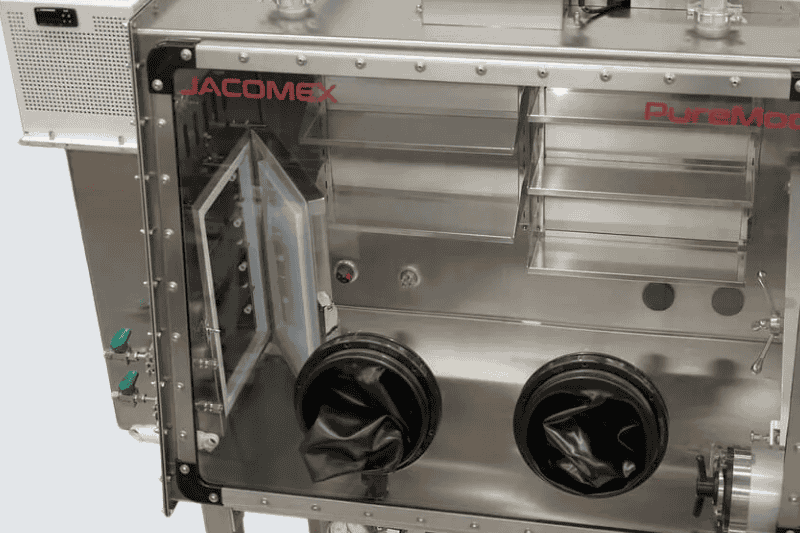

Recommended accessories for PureEvo glovebox

Download our Glove Boxes catalogue:
Photo Catalogue
PureSmart Catalogue
