Purification Units for Controlled Atmospheres

Picture 1-2
Left Side Banner1
Left Side Banner2
picto_iso10648-2
Jacomex-Made-in-France[99]

REMOVAL OF H20 AND/OR O2 FROM INERT GAS (Ar/N2/He)

JACOMEX systems offer a unique technical strength, known as one of the best, ensuring a stable pure atmosphere over time with spaced regeneration steps.

ADVANTAGES
▼ Substantial gas saving
▼ Automatic regeneration (N2-Ar mix.3-10% H2)
▼ Stable purity over time without regeneration nor maintenance
▼ Automatic pressure regulation without vacuum pump
▼ Silent functioning (noise level <50dB)

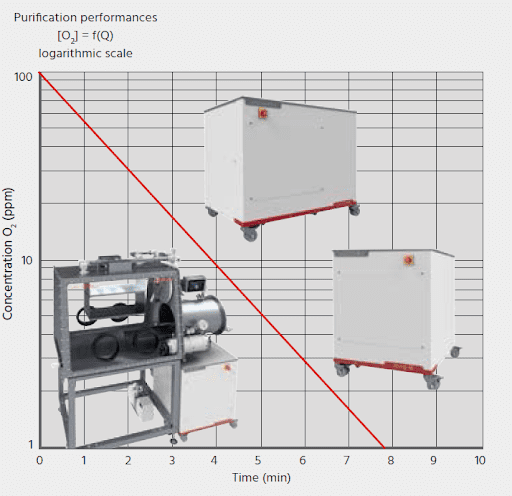

unit-purif



TECHNICAL DATA
▼ PLC-controlled purification unit
▼ Colour touch screen interface: continuous monitoring and recording of functional data
▼ Automatic regeneration N2 / Ar / He + H2
▼ Leakage rate <10E-5mbar l/s
▼ Closed loop circulation
▼ Configurable H2O and O2 alarms
▼ Configurable automatic gas flushing
▼ USB and Ethernet ports: data export and remote control

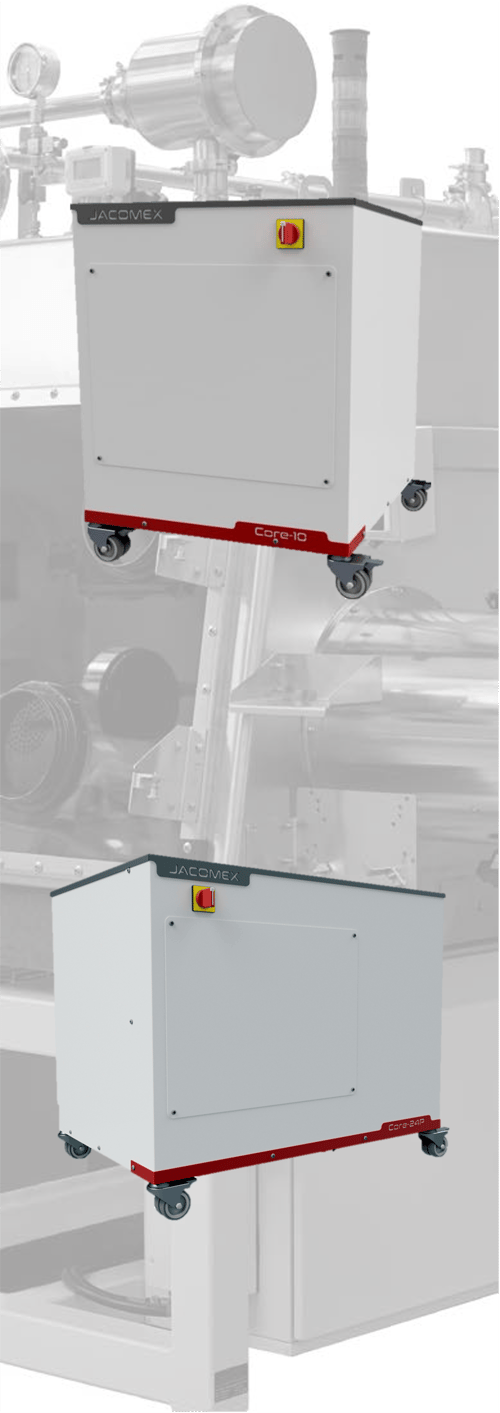

Picture 2

SINGLE-LINE PURIFIERS

Screenshot 2023-03-12 at 2.15.17 pm
▼ Circulation flow: 30m3/h
▼ Capacities : 36L O2 - 1000g H2O

Screenshot 2023-03-12 at 2.15.33 pm
▼ Variable circulation flow: max.120m3/h
▼ Capacities: 45L O2 - 1250g H2O

Screenshot 2023-03-12 at 2.15.46 pm
▼ Variable circulation flow:  max.120m3/h
▼ Capacities : 55L O2 - 1500g H2O





DOUBLE-LINE PURIFIERS

Screenshot 2023-03-12 at 2.16.08 pm
▼ Variable circulation flow:  max.120m3/h
▼ Capacities: 110L O2 - 3000g H2O
▼ Avantages :  Continuous purification
                         Ready-to-use purification tank

Screenshot 2023-03-12 at 2.16.25 pm
▼ Variable circulation flow: max.120m3/h
▼ Capacities : >280L O2 - 3000g H2O
▼ Advantages: Boosted capacities
                              Purification of large volumes
                              Safety for oxygen-highly-sensitive processes



 CUSTOM GAS PURIFICATION UNITS
STANDARD MODULAR PURIFICATION UNITS
Four-models reactors that can run as independent or combined modules:
▼ Recommended for large volumes and G[mega] glove boxes
▼ By-pass line and automated analysis circuit
▼ Air or water exchanger


Screenshot 2023-03-12 at 3.05.53 pm
TECHNICAL DATA
▼ Purification of volumes until 20m3
▼ Two parallel lines (4 purifiers)
▼ Continuous purification even during purification phases
▼ Capacity per line > 560L O2 - 3900g H2O





Screenshot 2023-03-12 at 3.06.07 pm
TECHNICAL DATA
▼ Purification of volumes until 40m3
▼ Two lines assembled in series (4 purifiers)
▼ Over-boosted H20 and O2 purification capacity
▼ Total capacity > 1120L O2 - 7800g H2O

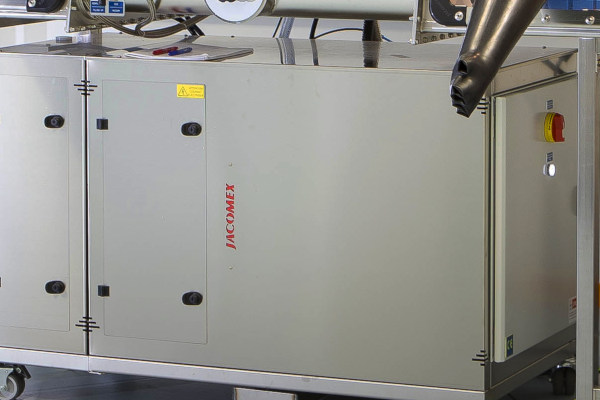

purificateur-p-sys-ii-p

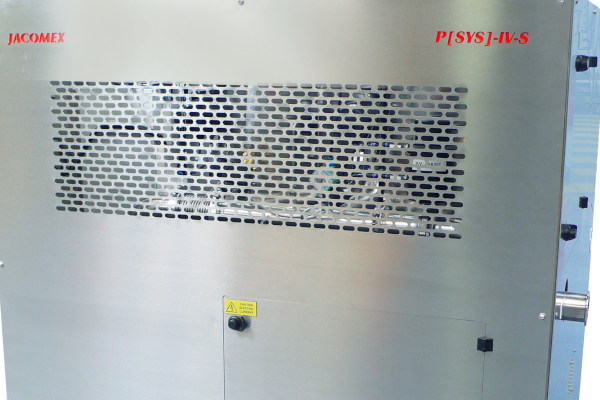

purificateur-p-sys-iv
