One focus for the best expertise – Glovebox containment solutions
- State of the art nuclear containment enclosures
- Leak tightness class from class 1 to 3 in compliance with ISO 10648-2
- Design compliant with ISO 10648-1 and AGS-G006-2005 standards
- Third party process integrations
- Custom design for fit for purpose solutions
- Nuclear safety analysis and substantiation (containment, mechanical, thermal, ventilation, seismic, ergonomics, radiation shielding, ATEX)
- Human Factor, Organization and Technological Risk assessment
- Proven technologies and Industry standard ventilation safety features
- Inert gas atmosphere management
Standardised Features for Cost Effective Modular Solutions
- Standard 2, 3 or 4 gloveports and entry / exit airlock systems
- Negative relative pressure operation

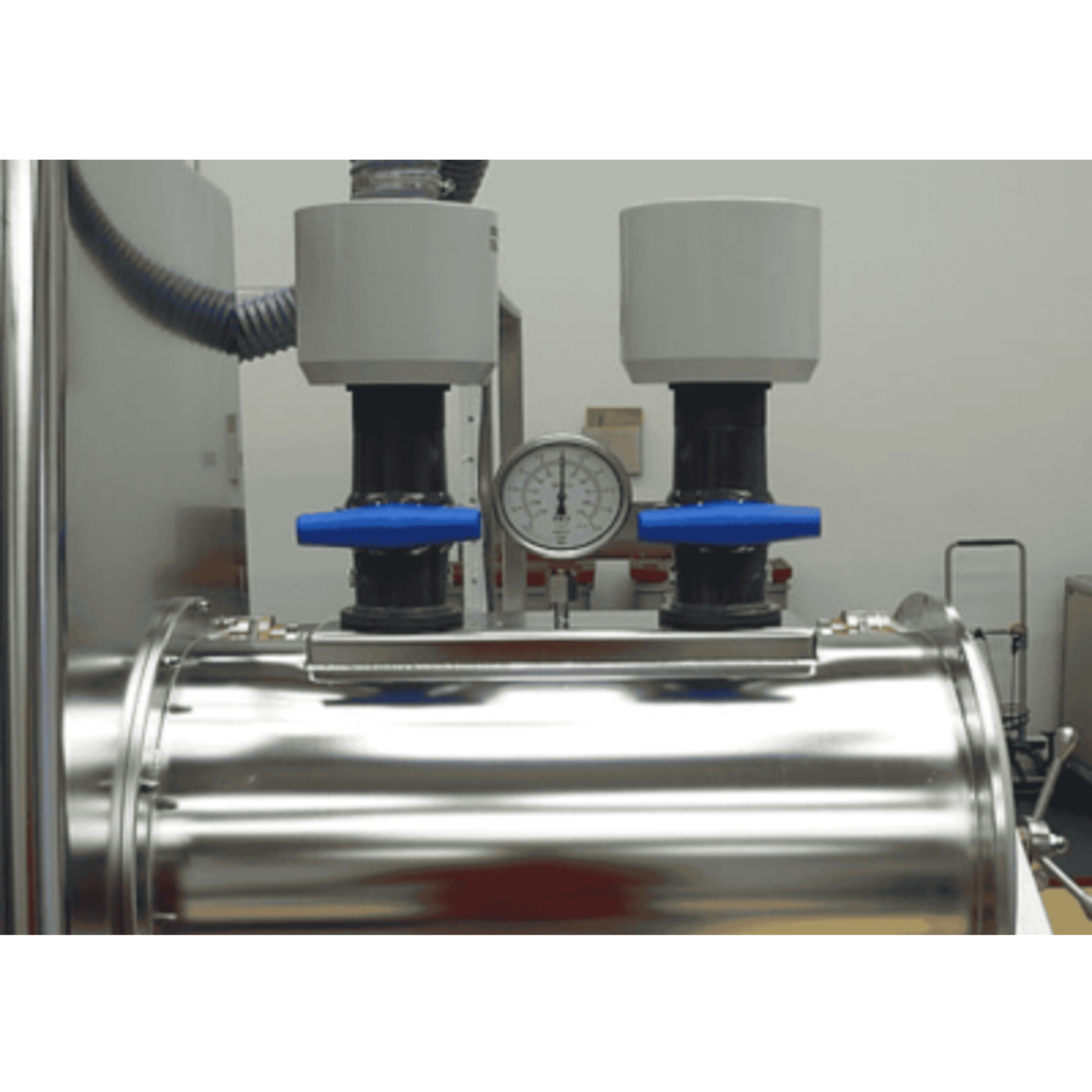

- Front or side loading ventilated transfer airlock, interlocked

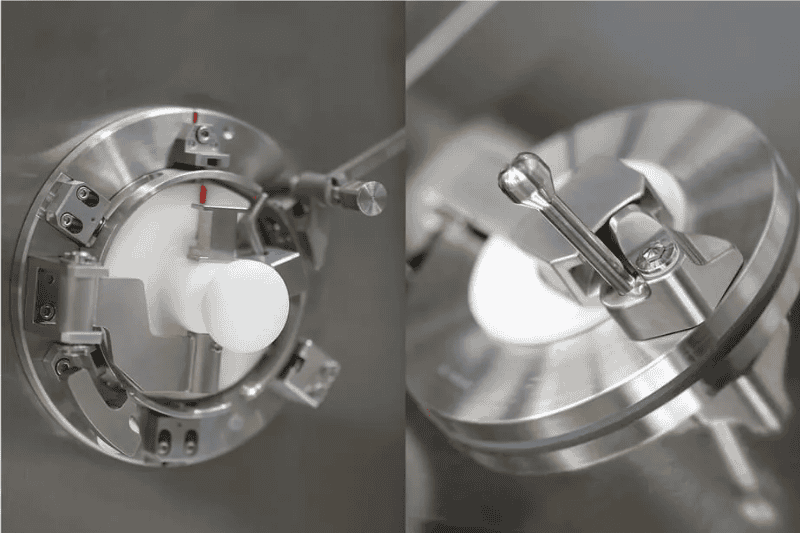

- Bag Rings, transfer ports, RTP and feedthroughs
- Rounded corners
- Internal surface finish <1,6µm
- Active confinement safety for containment breach protection
- Double inlet and outlet Nuclear certified HEPA H13 filtration
- Single faced or double faced working stations
- EPDM gaskets
One focus for the best expertise – Glovebox containment solutions
- Dedicated JACOMEX project and engineering team
- Third party process and OEM integration
- Fully custom design
- Automation and EC&I
- Design validation 1:1 scale mock-ups
- Alpha, Beta, Gamma, Neutron radiation shielding
- Special docking systems
- Acids resistant coatings (ALAR)
- Special filtrations: Acids, iodine, gases
- Integrated overhead crane…
Exclusive Gas Purification for Oxygen And Moisture Sensitive Materials
We offer a unique nuclear glovebox design coupled with its exclusive inert gas purification systems to allow for the control of your inner process atmosphere
- Gas inerting in closed loop and negative pressure
- Gas purification down to less than 1ppm of O2 and/or H2O,
- Available for argon, nitrogen, helium gas atmosphere
- Temperature control
Nuclear Glove Boxes
Discover some projects in Nuclear industry
Essays on radiological molecules

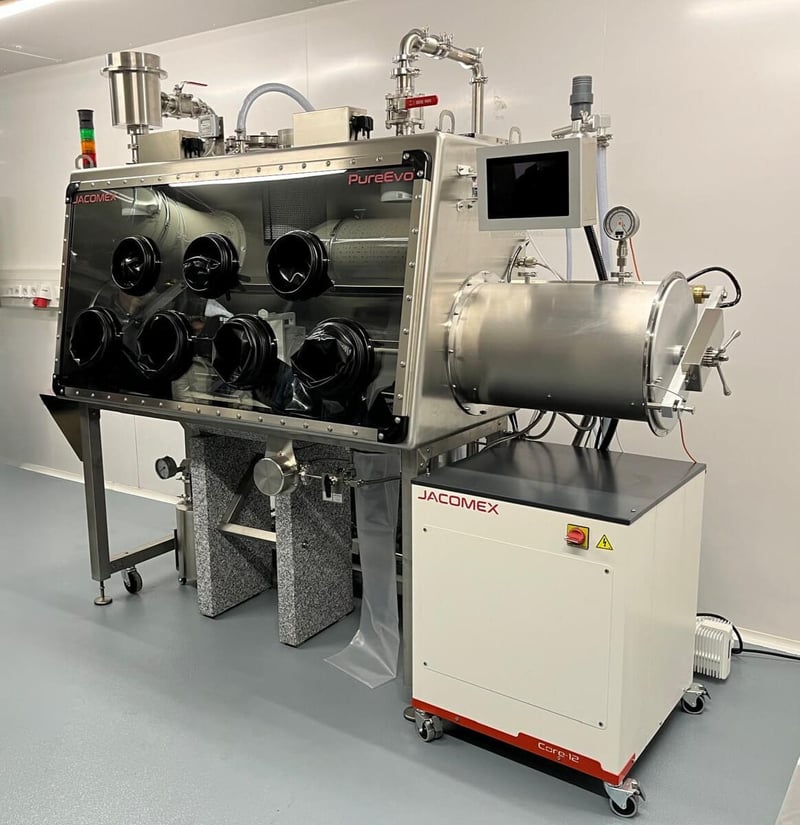

Research and analysis glovebox for handling nuclear materials such as plutonium or tritium, in a purified atmosphere (under argon) and in complete safety.

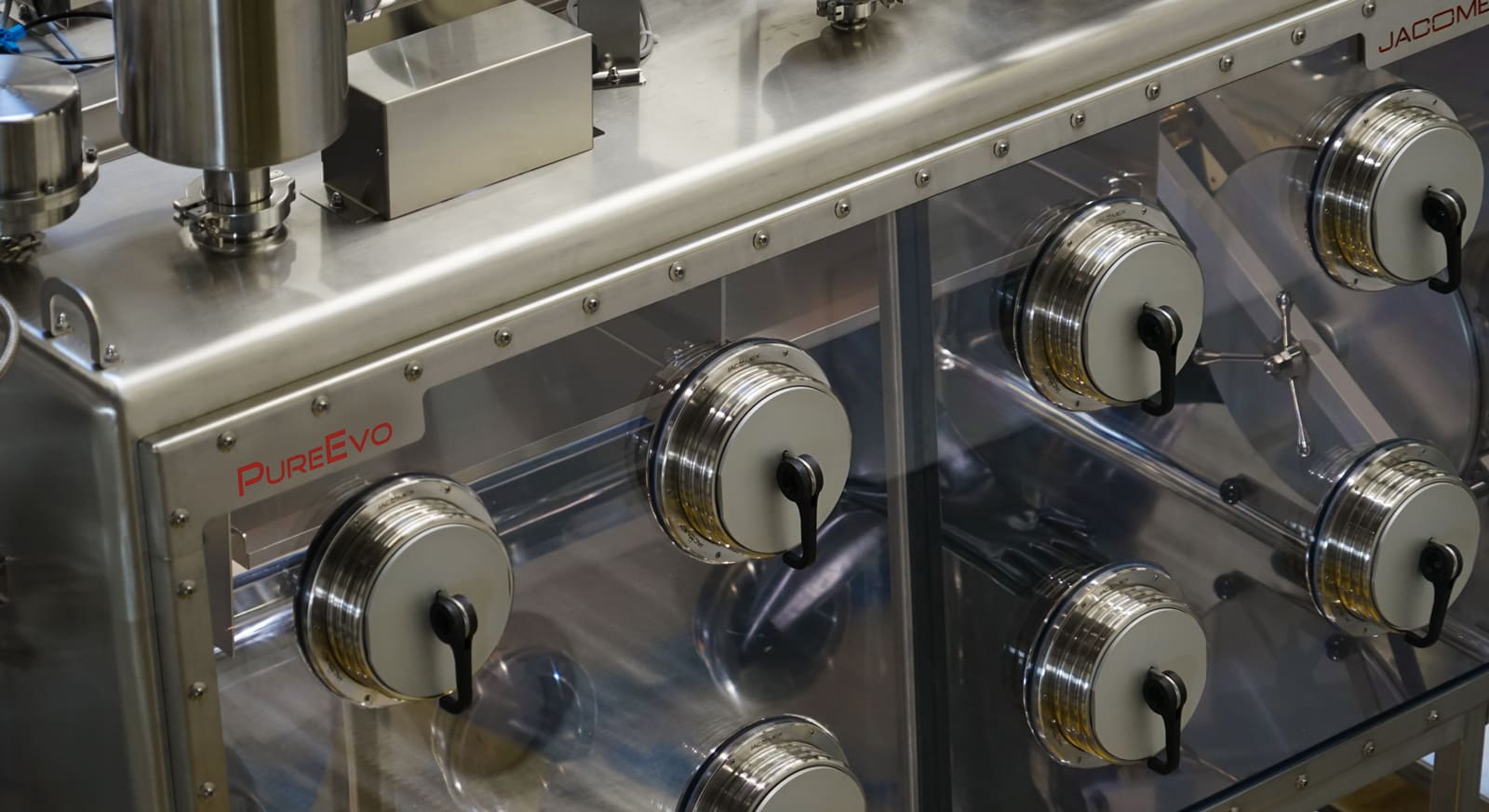

The configuration of this PureEvo T4 CV is typical for nuclear activities:
- Rounded corners, essential for inner enclosure de-contaminability ;
- An additional interlock system for the antechamber, to prevent opening both doors at the same time.
- Bag In Bag Out outlet filter housings, allowing for filter replacement without breaching the nuclear containment.

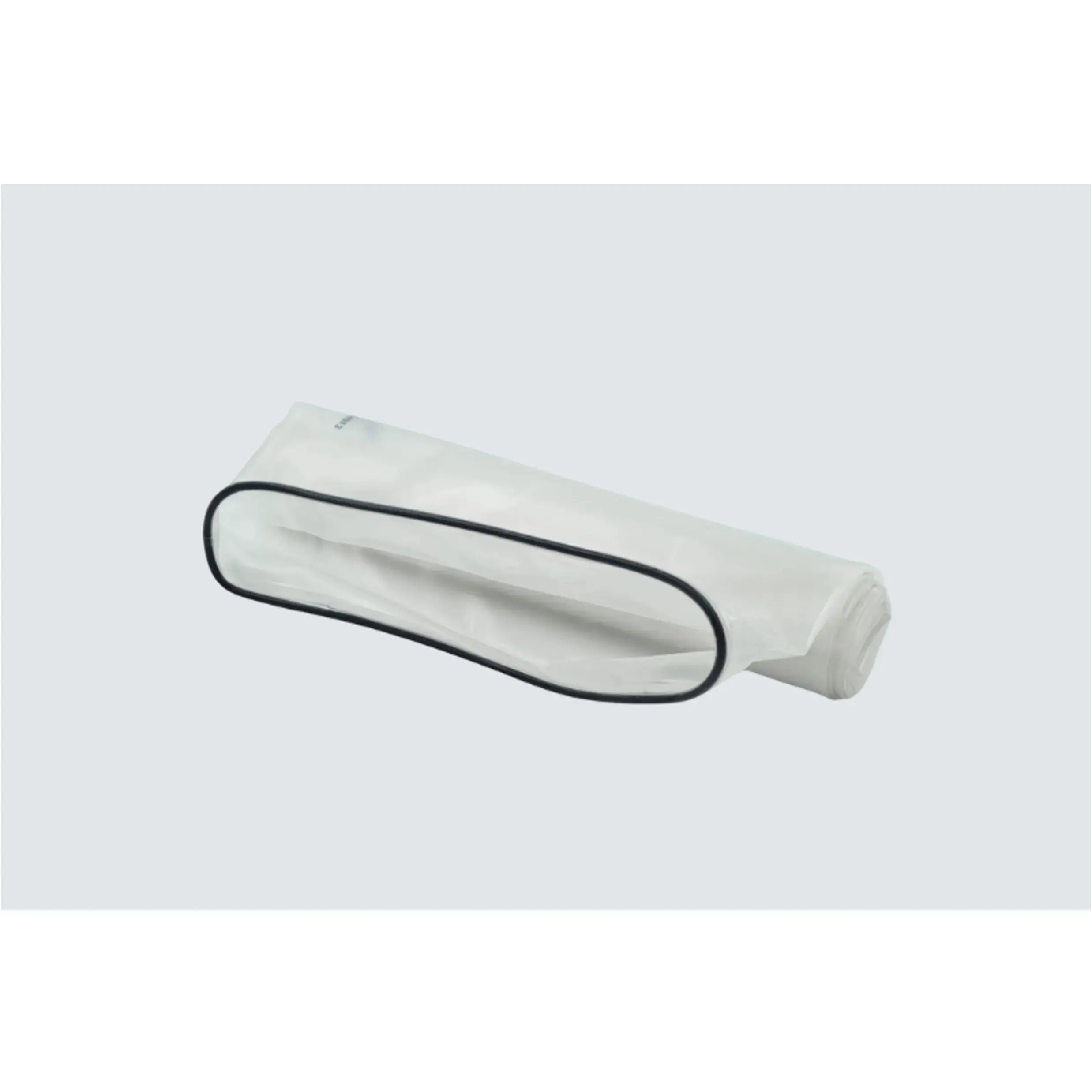

Waste bag ports, with sealing bags, so that nothing gets out through the antechamber, and containment is never breached during transfer.

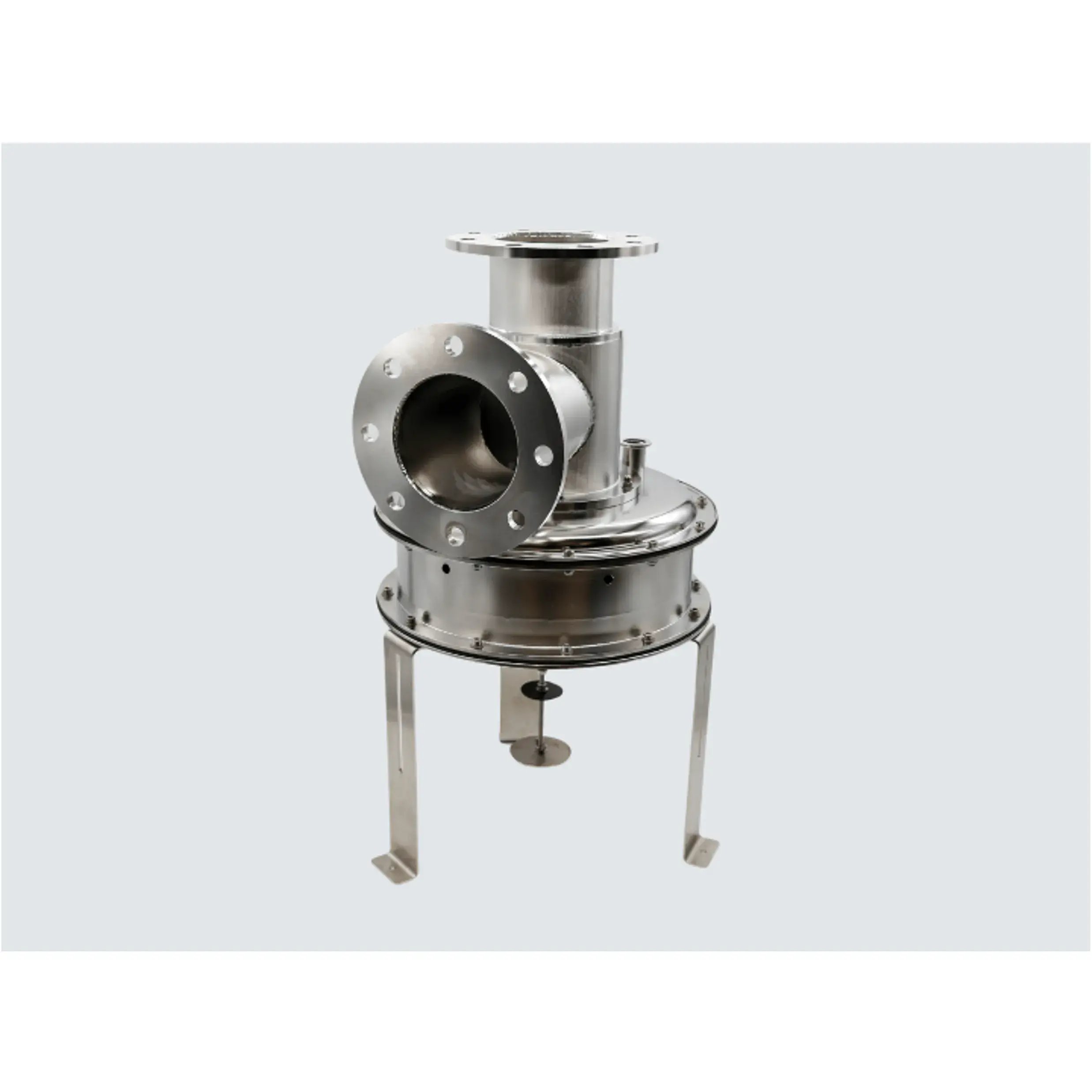

- VMS 120 (Metal Safety Valve 120).
Solution:
Research on molten salts

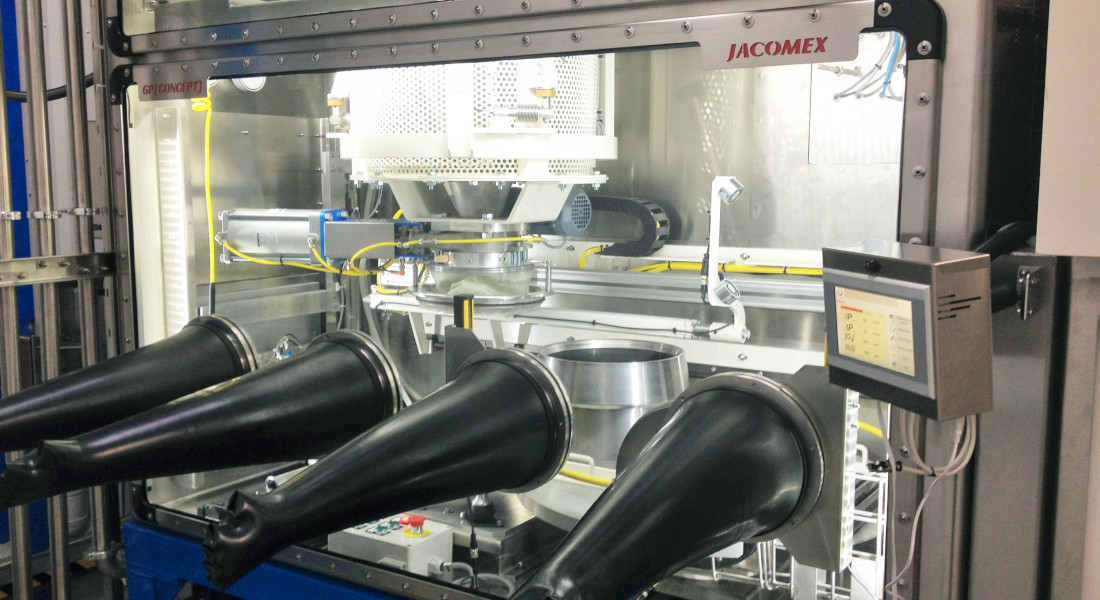

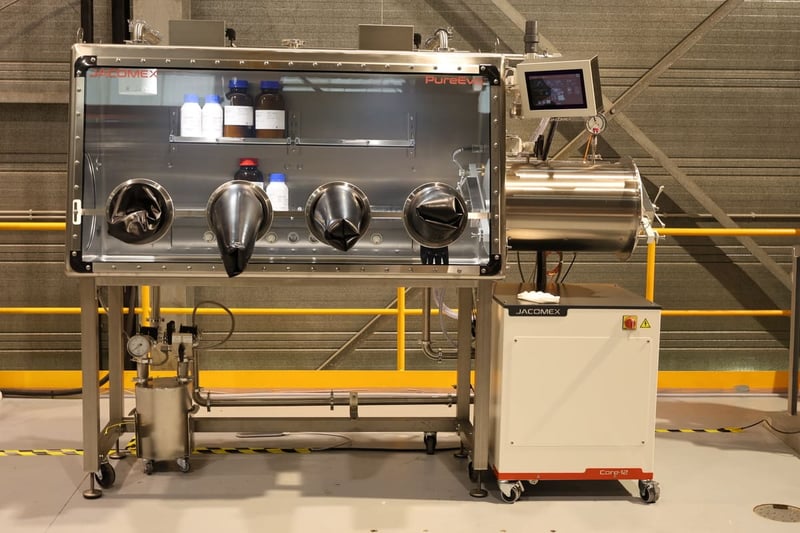

PureEvo glovebox, modular and expandable, installed at our client ENGIE LABORELEC in Linkebeek (Belgium).
The glovebox is purified thanks to a Core 12 purification unit, which maintains O₂ and H₂O levels as low as possible (less than 1 ppm).
The tests conducted in the new “Advanced Chemistry – Harsh Environment” laboratory will focus on several areas of activity, including nuclear Small Modular Reactors (SMR), batteries, electrolyzers, and thermal storage and transfer, thanks to their advanced work on molten salts and liquid metals such as sodium, lead and lithium.
Solution:

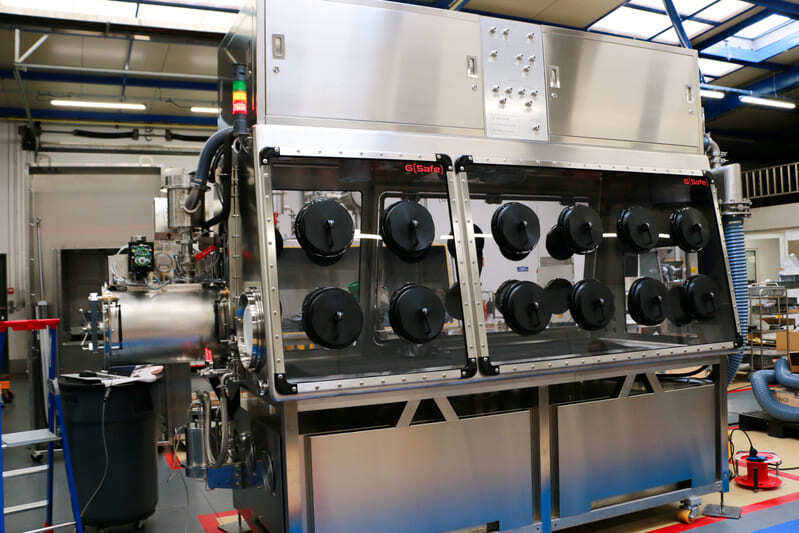

Operator safety for nuclear operation

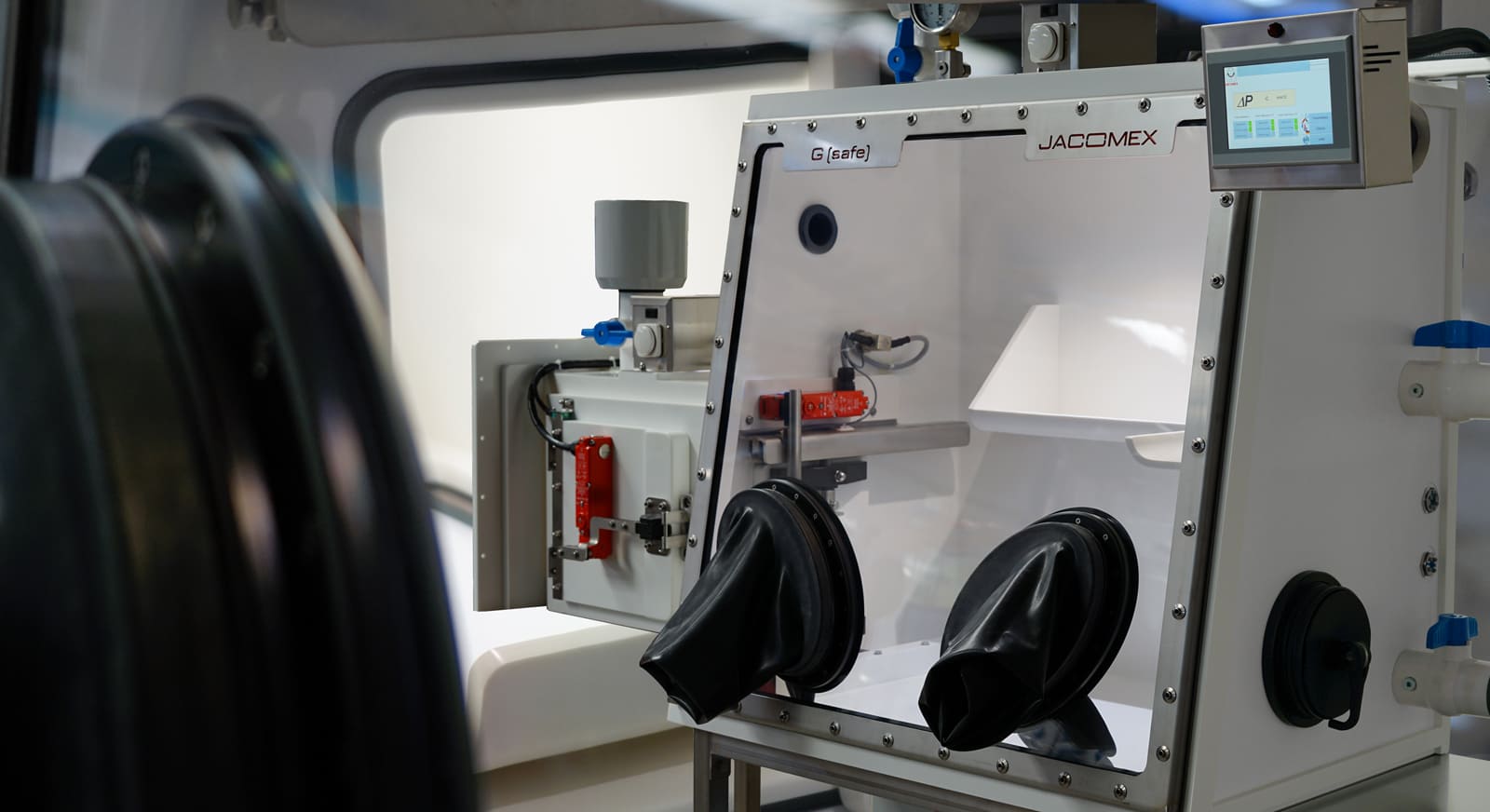

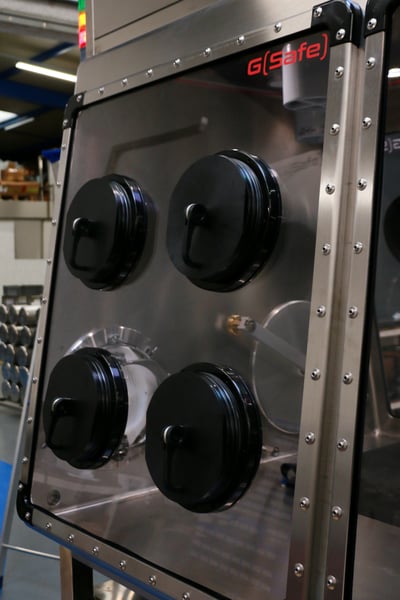

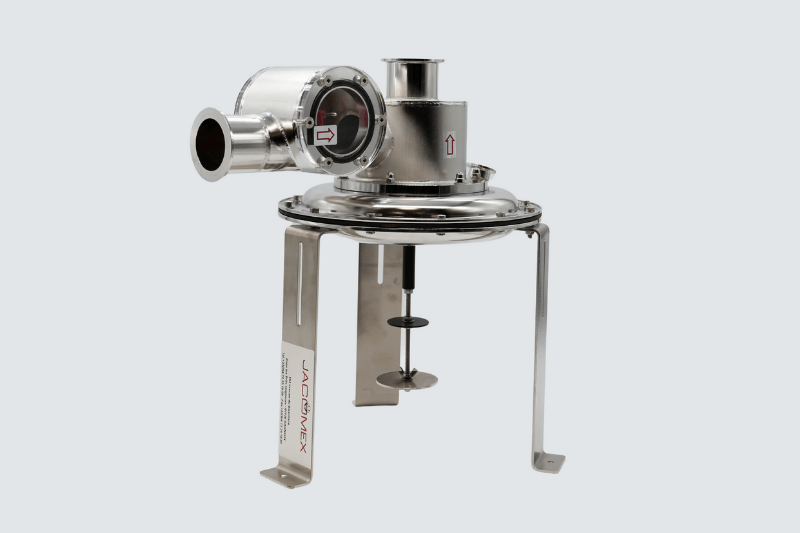

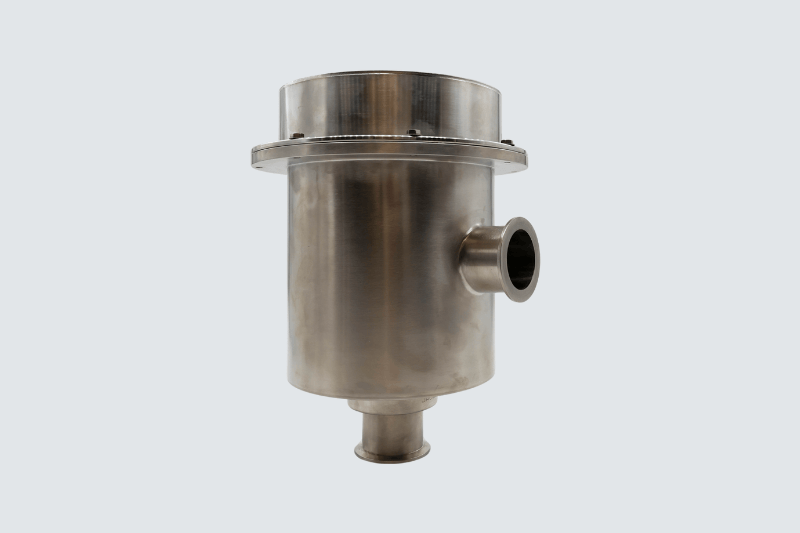

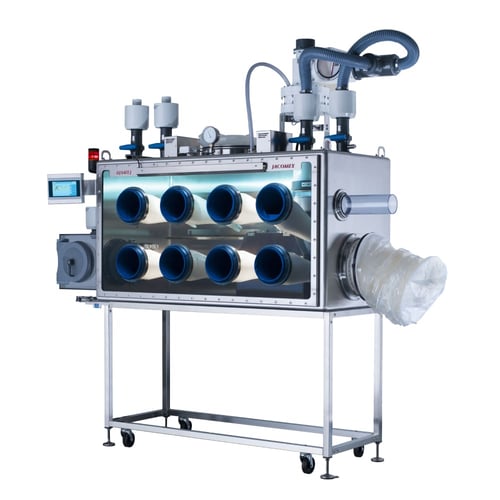

A G(Safe)T4 FF CV (double face with rounded corners) glove box for an American company working to develop cancer treatment with alpha-emitting radionuclide Actinium-225, with integration of a a massive Mass Spectrometer ICP-MS inside the glovebox. It comes with a VMR 160 Regulatory valve, a VMS 63 Safety valve, 300m3/h and 50m3/h stainless steel filter housings.
Solution:

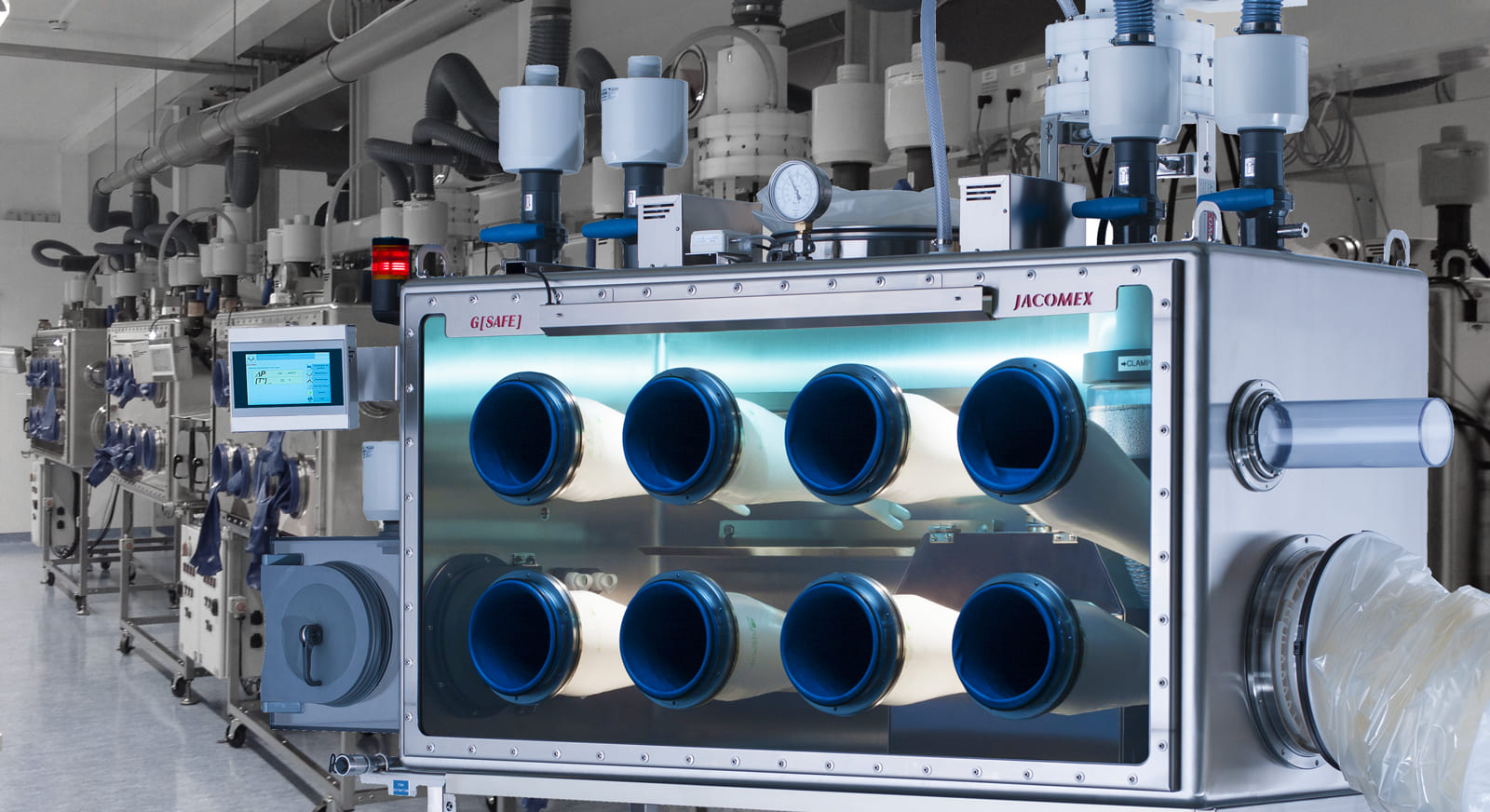

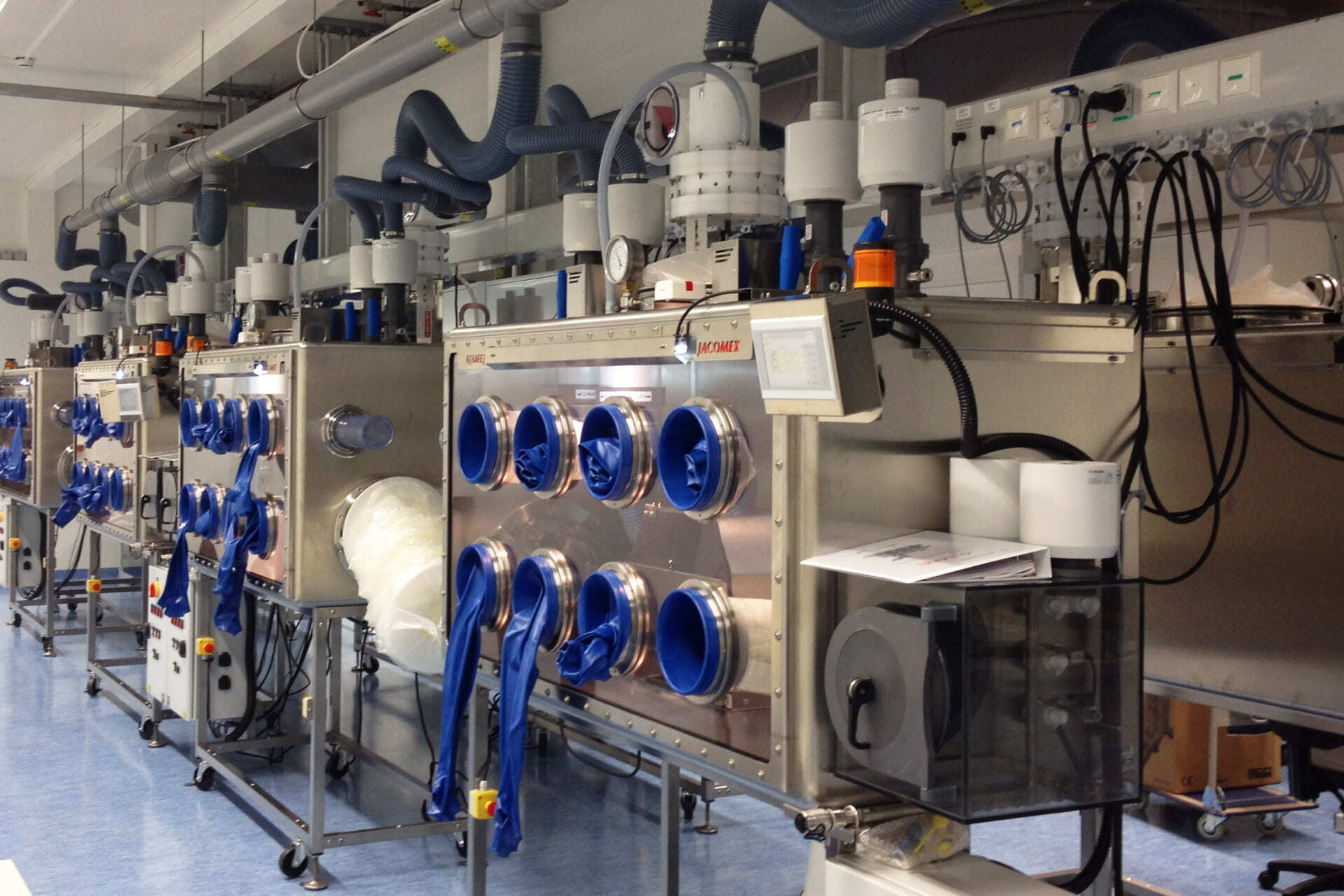

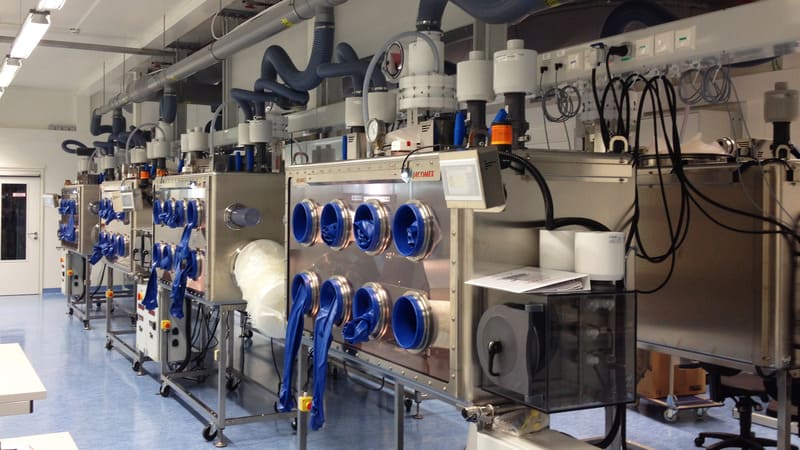

Line of 20 glove boxes

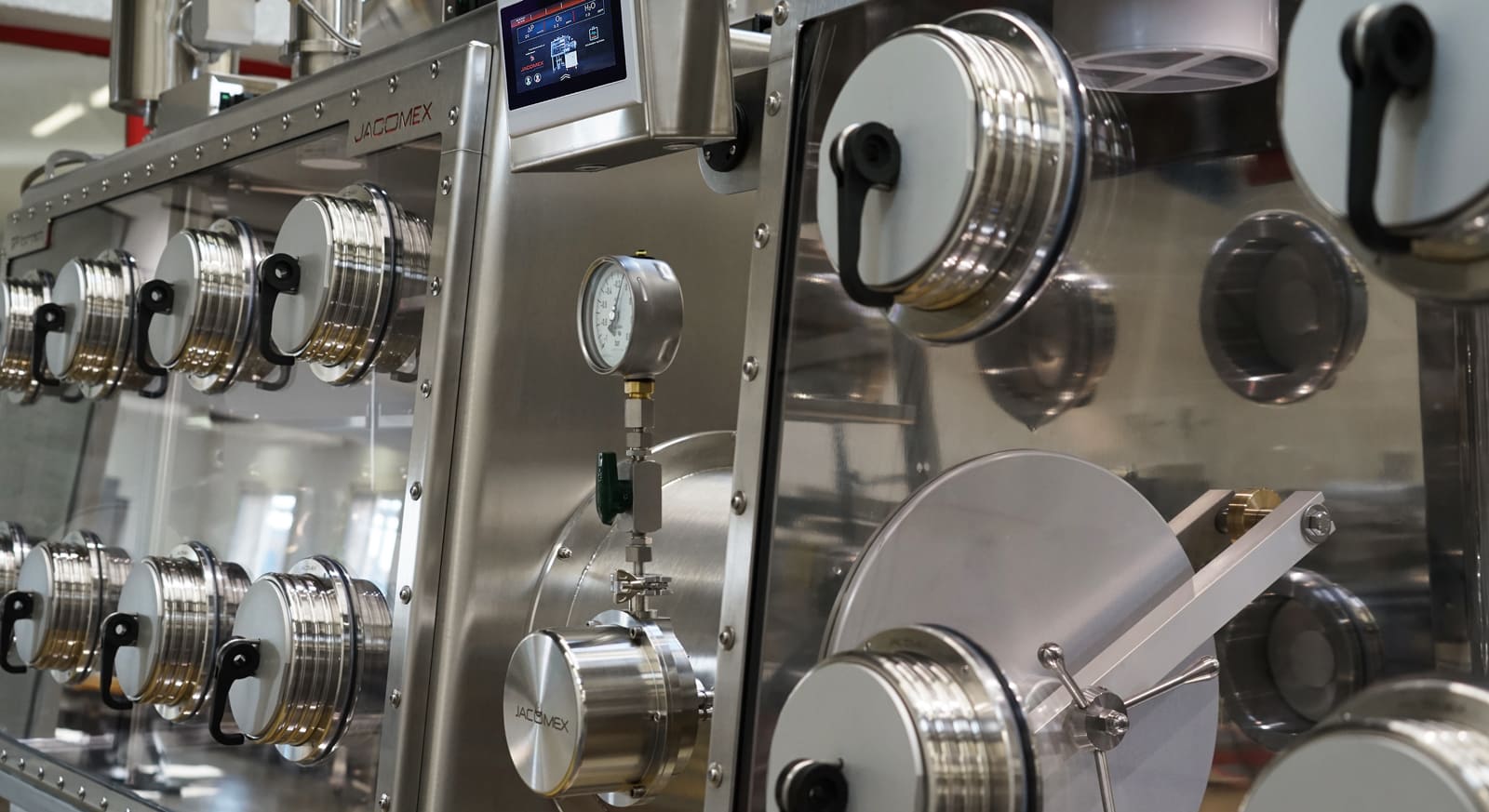

20 glove boxes designed and manufactured by Jacomex.
Application glove boxes to include pressure regulating valves with high automatic safety flow, acid vapors trapping and automated monitored alarm management.
Glove boxes dedicated to various nuclear processes like dissolution, balance, waste solidification, coulometry, separation, dilution, preparation, storage, seals, photometry, decontamination…
In accordance with American Glove Box Society “Standard of Practise for the Design and Fabrication of Nuclear Application Gloveboxes – AGS-G006-2005”.
Solution:

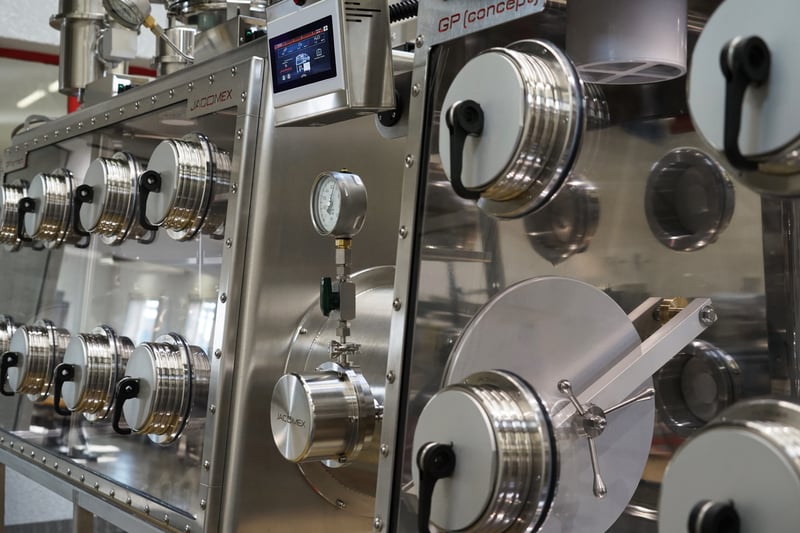

New Generation Reactors

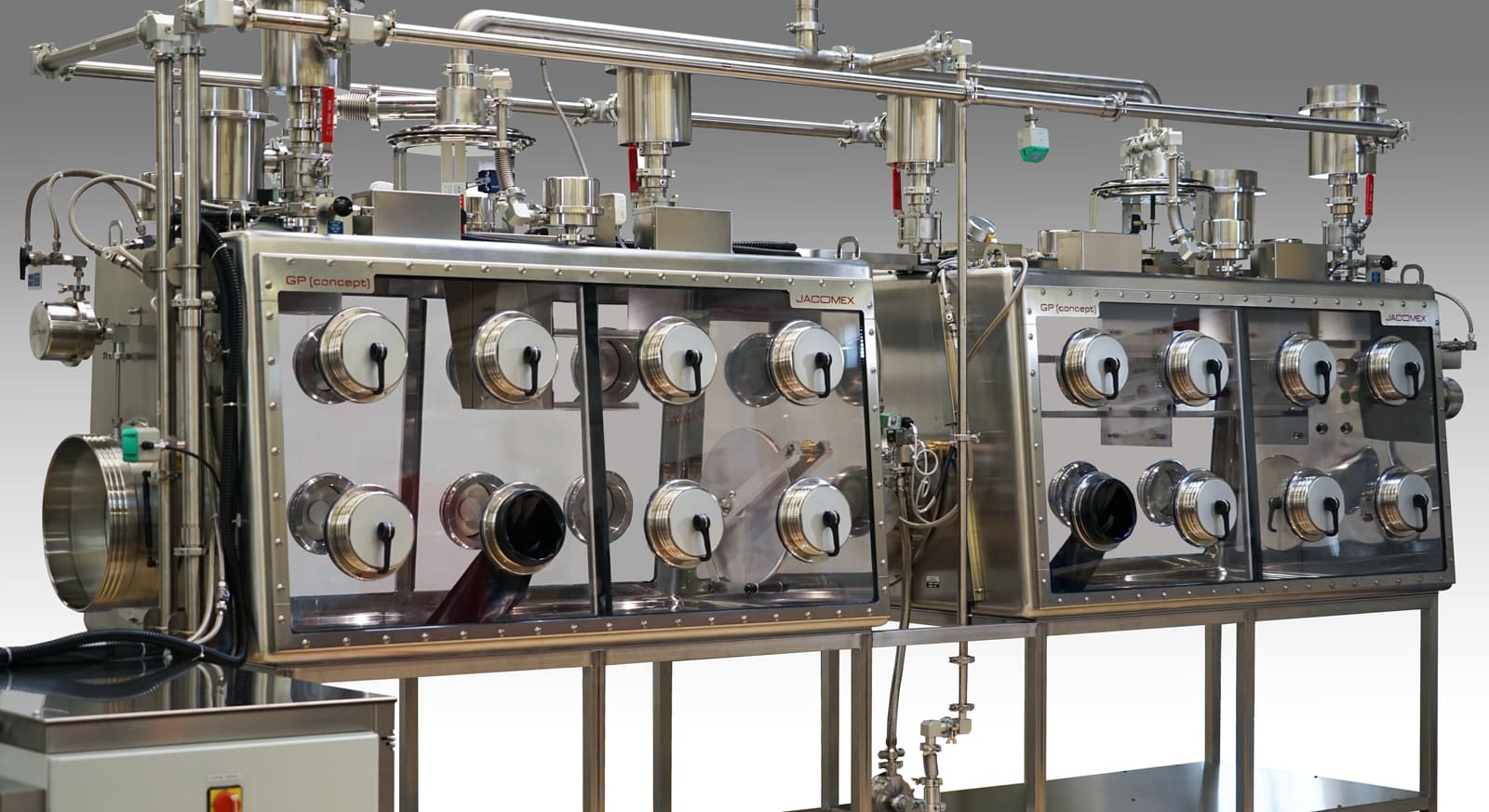

Design and manufacturing of two interconnected nuclear glove boxes for experiments and corrosion studies in nuclear environment under purified inert atmosphere. High-capacity purification unit enabling residual contents below 5-10 ppm in oxygen and moisture in negative pressure conditions. High safety level with double HEPA filtration in glove boxes and all transfer systems and safety valves in case of containment break.
Solution:

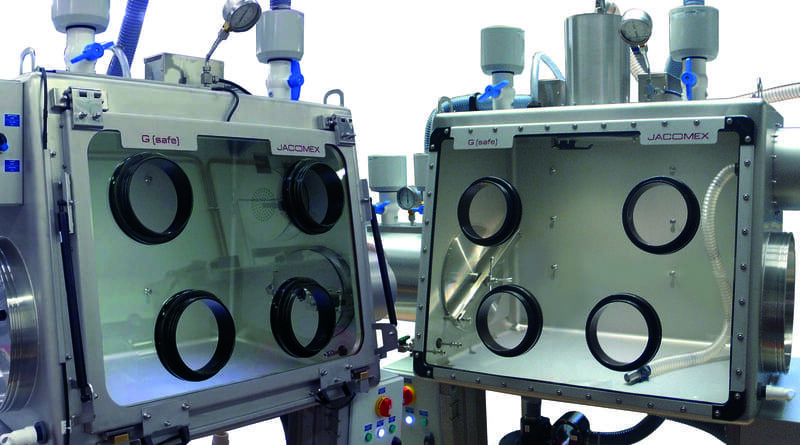

Decontamination & Decommissioning in Glovebox

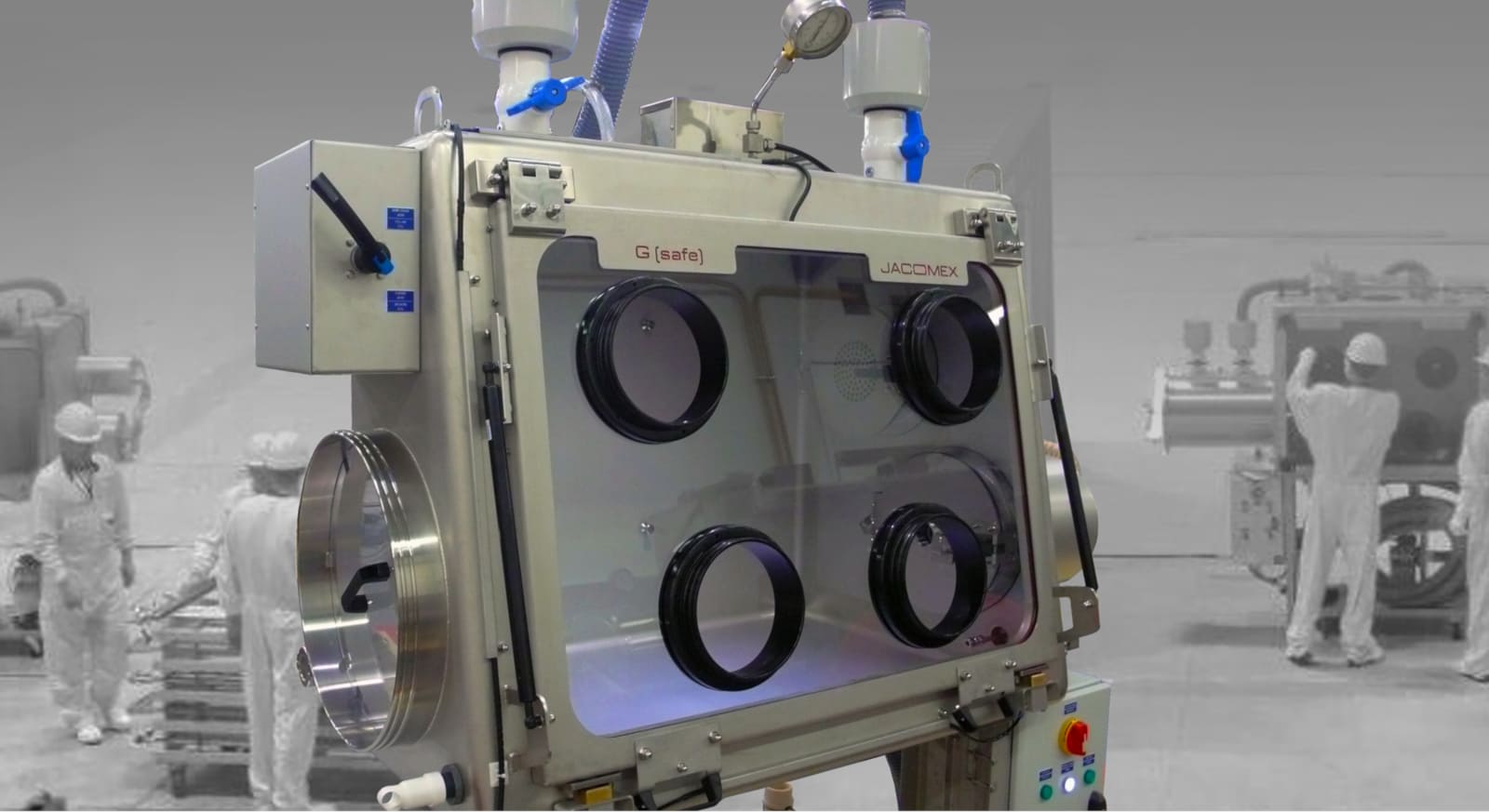

Glove boxes for the maintenance and decontamination of parts on a radioactive waste storage site.
Installations with Jacomex safety control valves operating under air.
Options and equipment on request:
- Transfer airlock and large diameter bag rings.
- Safety lift-up panel.
- Closed loop vacuum cleaner with safe waste management.
Solution:
