Welding Applications

Glove boxes for welding applications





We have always been a reference in the field of argon support, as a major supplier of players and contractors in the aerospace sector.

Titanium, molybdenum and other metals which are very sensitive to high temperature oxydation require special attention during the welding processes. ​

Where guaranteeing the welding environment pure and free of Oxygen (traces in ppm), so that no browning or brittleness phenomenon occur, and to ensure the best mechanical properties to the welds, the Jacomex purified gloveboxes and large enclosures integrate the welding process, making it highly repeatable and reliable.

picto-jacomex-industrie
Main applications
Demanding industries rely on welding processes that require constant monitoring and recording of the inert gas critical characteristics surrounding the welds. ​This is where an atmospheric enclosure is key. Jacomex supplies inert gas welding gloveboxes with extensive track record in the following fields.
Aerospace     -     Nuclear     -     Medical​     -     Naval     -     Electronic     -     High performance Automotive Industry

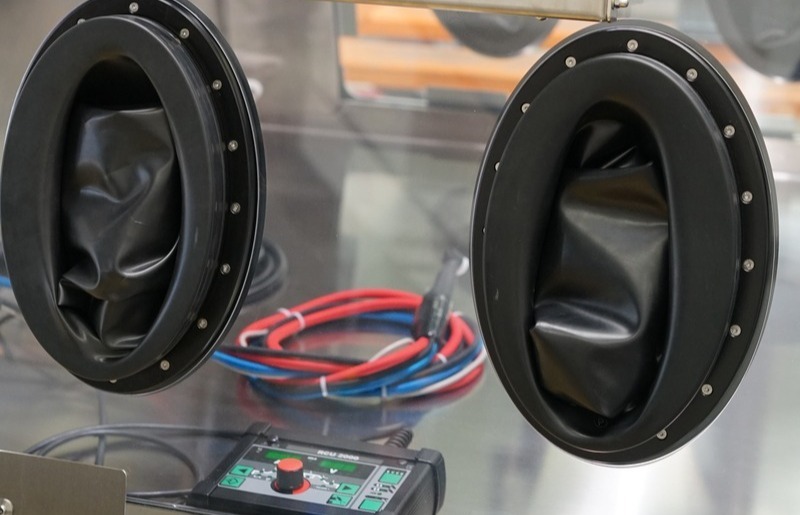

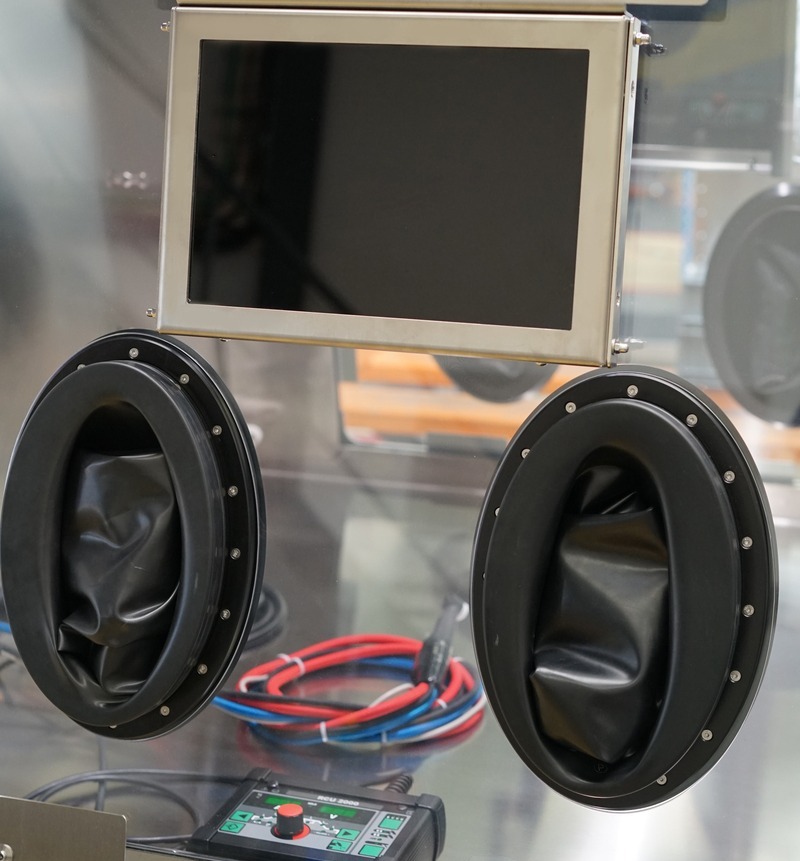

Welding1-1
Standard configuration

Our offer

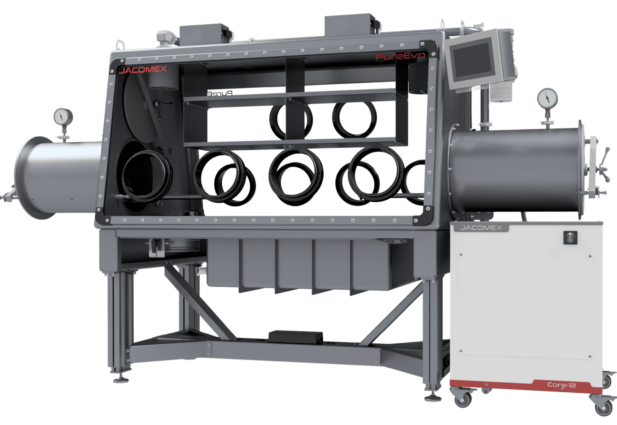

- A range of standardised cost-effective glovebox systems (PURE)​

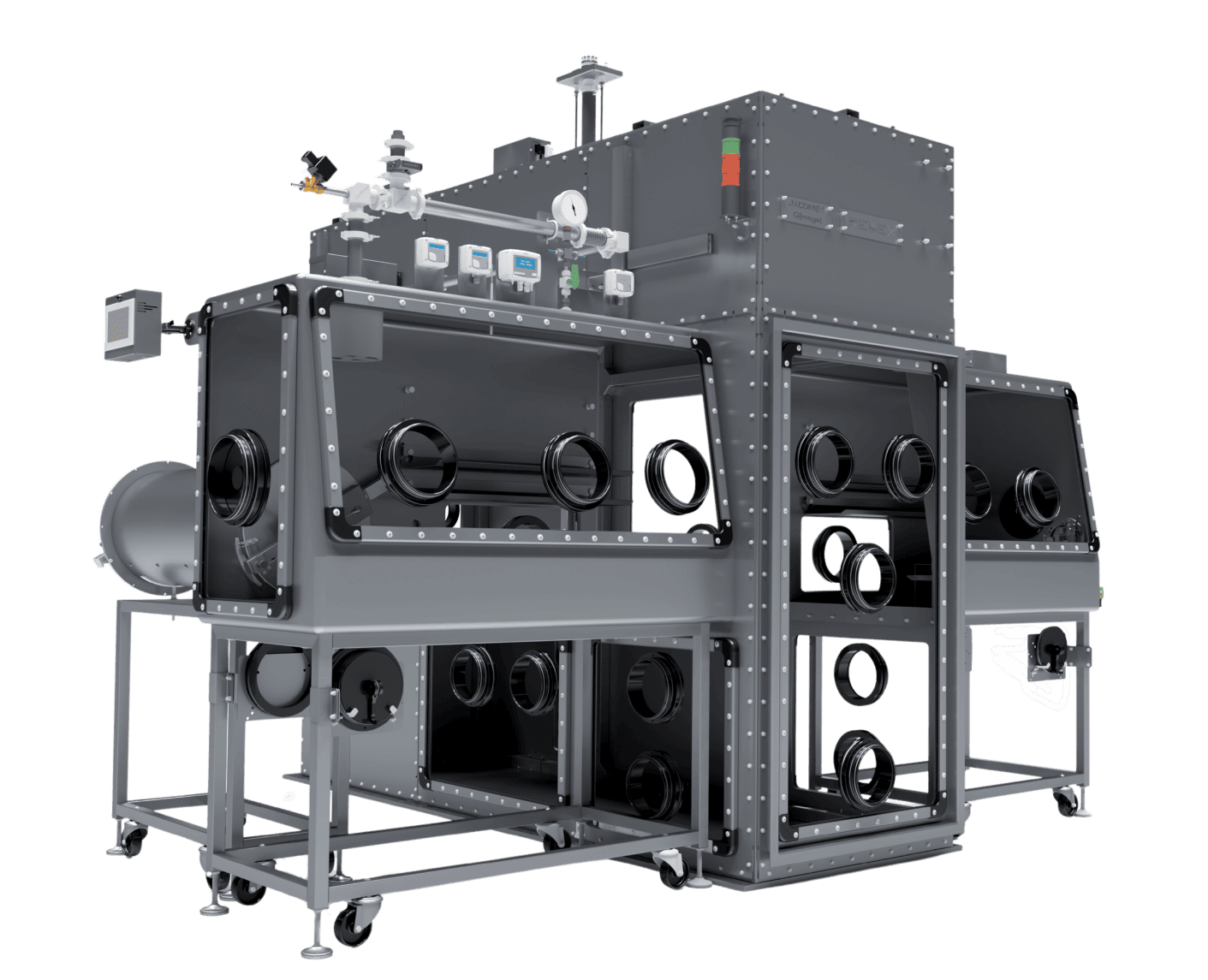

- Large bespoke inert gas enclosures to fit the client’s dimension requirements (G-MEGA) ​

- TIG Welding under purified argon gas​

- Lazer Welding process integration in purified argon​

- Construction material in 304L or 316L for no carbon cross contamination​

- Rugged industrial design​

- Fully enclosed welding process requiring no additional gas input, lowering the gas consumption, and guaranteeing the highest reproducibility of the welds​

- Customizable loading and unloading antechamber sizes.​

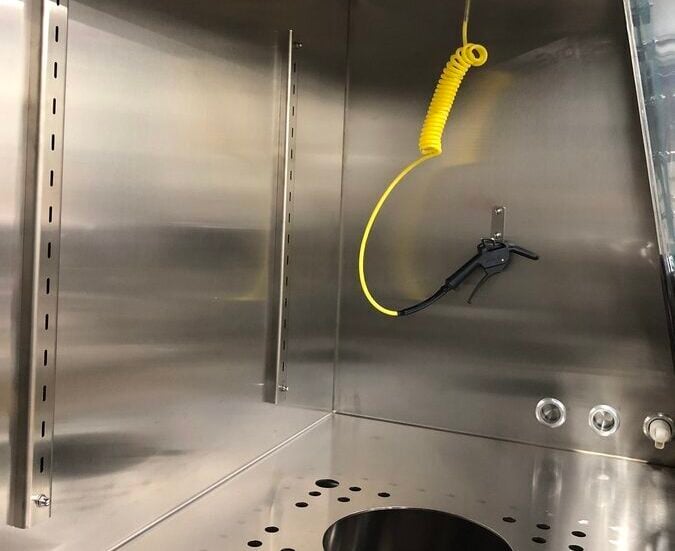

Divers-9-1-rotated-e1734260371610-675x551

Standardised Features For Cost Effective Modular Solutions

- Standard 2, 3 or 4 glove ports and entry / exit vacuum airlock systems​

- Standalone « Core » gas purifier for argon, nitrogen, helium (or a mix thereof).

- Negative or positive relative pressure operation​

- Panel integrated welding glass (option)​

- Integration of customer welding torches (option)​

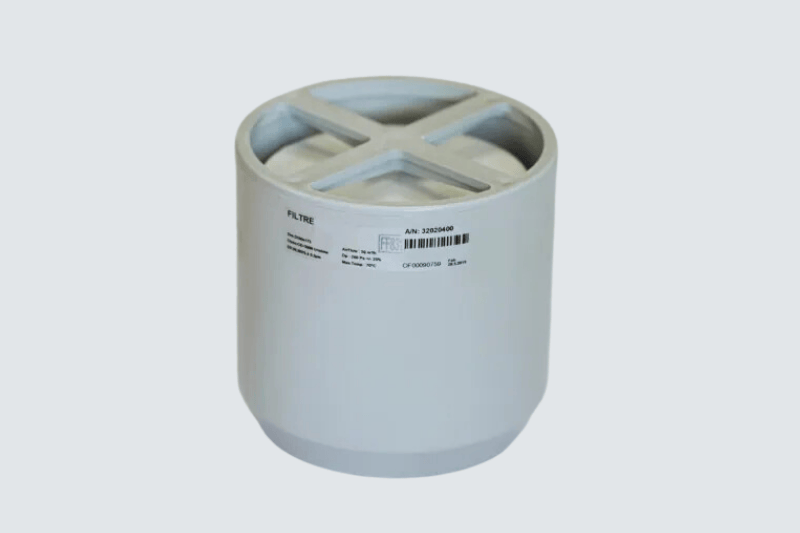

- Fumes and dust filtration​

- Active confinement safety for user and environment protection (option)​

- Single faced or double faced working stations​

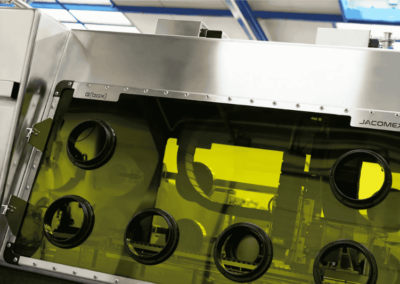

- Laser protection window (option)

Get a Quote

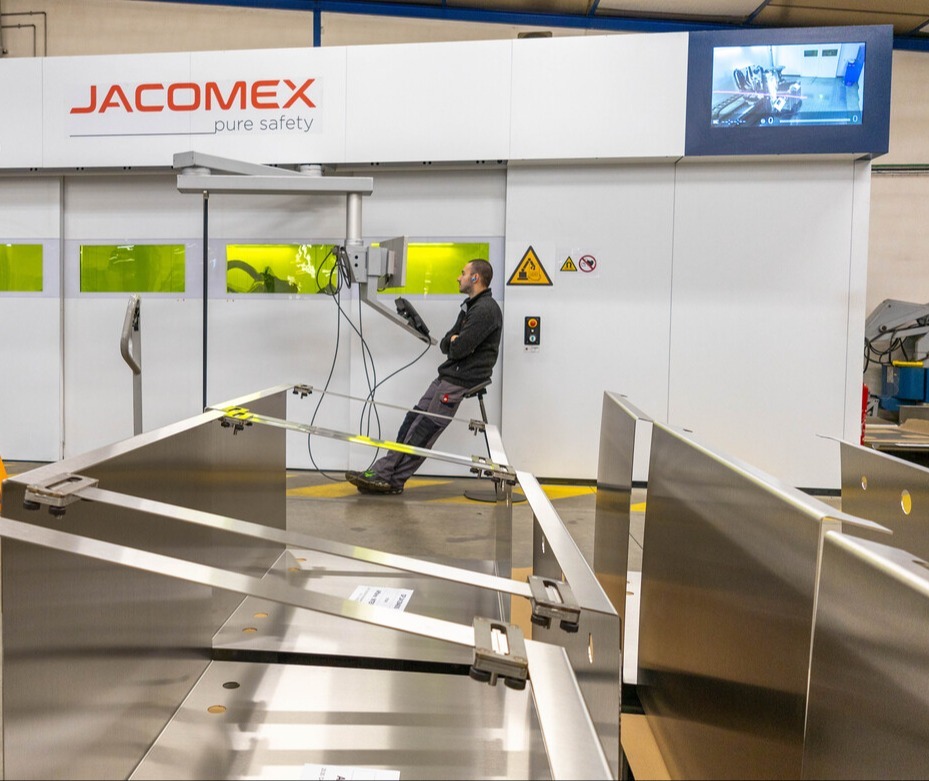

Corporate-15-1

Large Industrial Welding Enclosures

- Fully custom design of large volumes (typically 15 to 50m3 and up)​

- Dedicated super duty standalone CORE gas purifier​

- Dedicated JACOMEX project and engineering team​

- Third party process and OEM integration ​

- Special loading and unloading antechamber systems for high productivity​

- Special filtrations: Fumes, gases​

- Inner conveyers (option)​

- Active confinement system for user safety (option)​

- Integrated overhead crane (option)

Discover some projects in the Welding industry

Welding

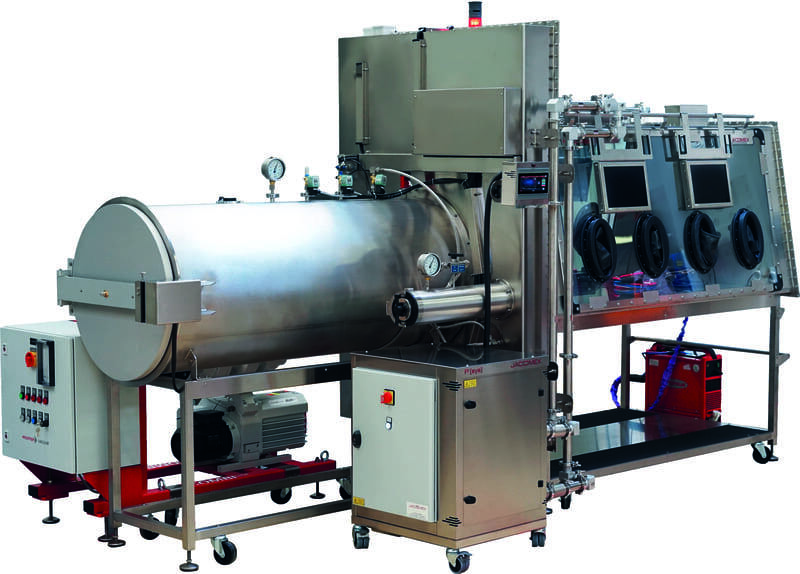

Titanium Welding in Glovebox

- Welding of titanium parts for the aeronautics.

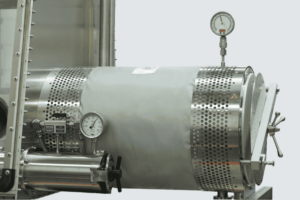

- Big main vacuum chamber for transferring very long titanium parts.

- Multi-zone welding areas with mobile protective screens.

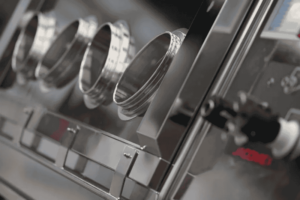

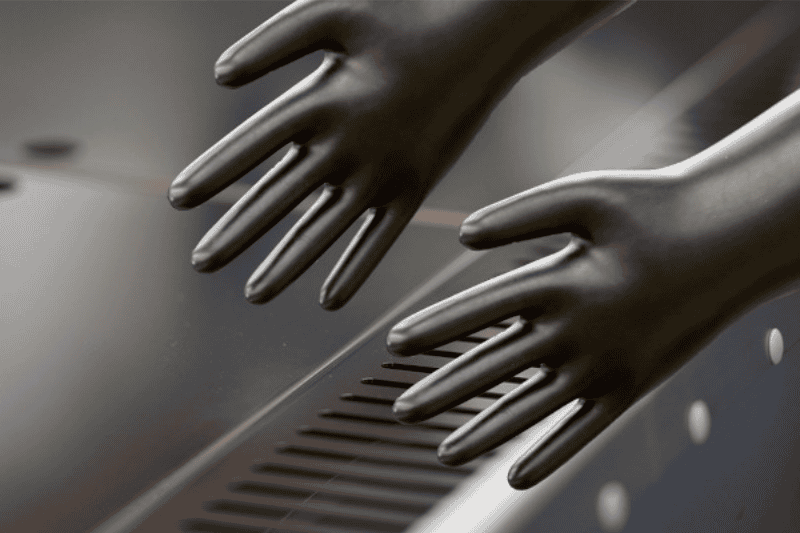

- Ergonomic glove rings and built-in welding torches.

- Interlocked safety doors, automatic inner door, H2O+O2 purification unit and analysers.

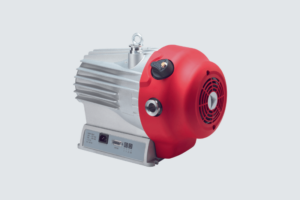

- 60m3/h pumping unit with primary pump and a Roots pumping system.



Solution:

icon-bag-pureevo-1

titanium-welding-project

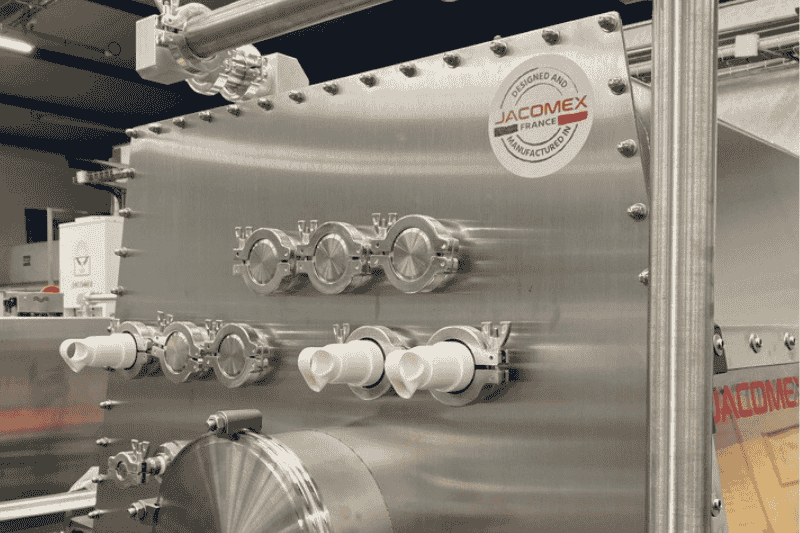

Equipment and features

Recommended Features and Options for batteries
