Acrylic Glove Boxes
AcryLab

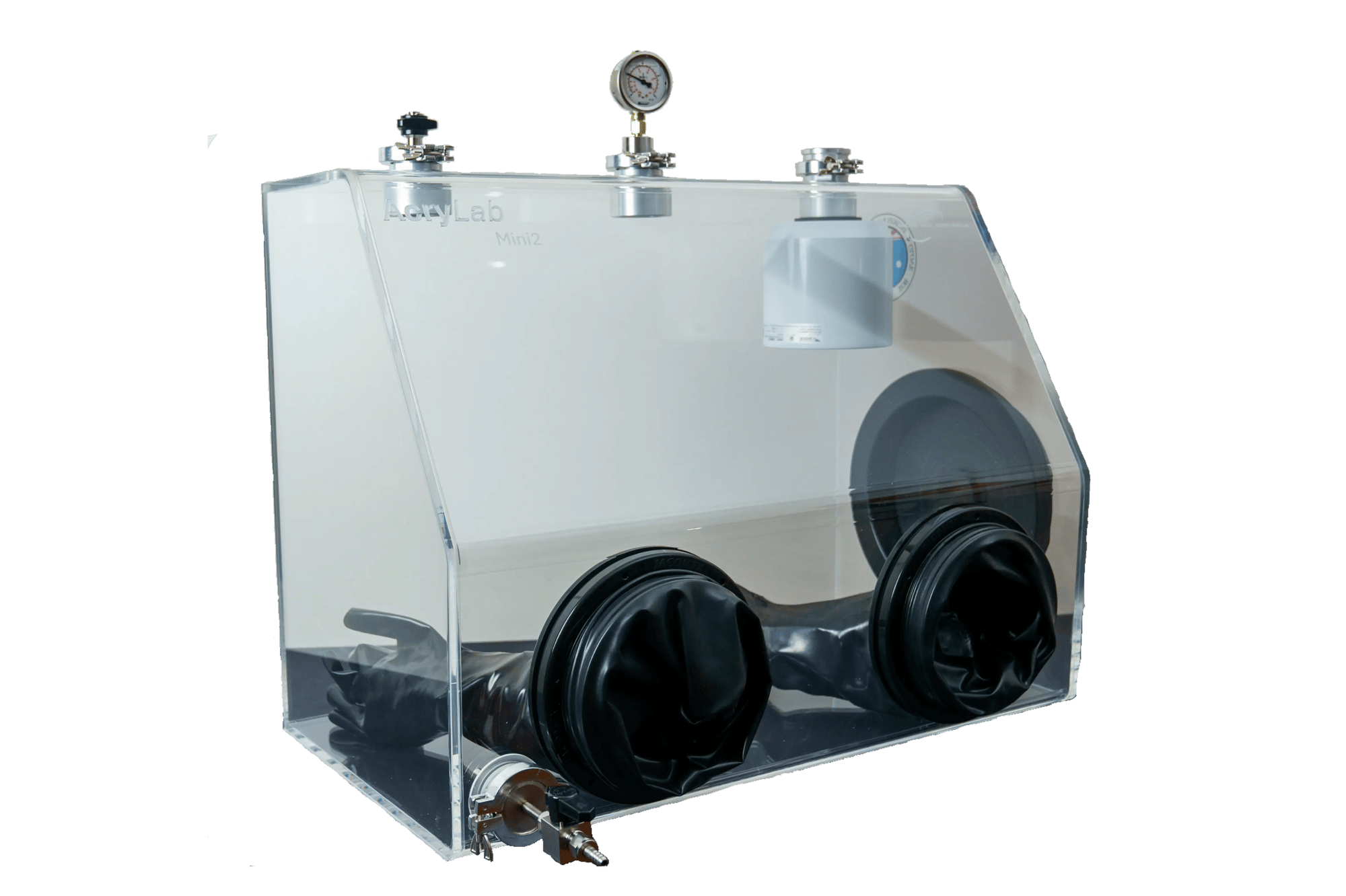

The AcryLab design is based on a modular platform that allows users to expand their existing industrial and lab gloveboxes to meet increasing workspace requirements. The Glovebox expansion may include additional antechambers for thru-flow work processes, cold storage freezers, process vacuum ovens and furnaces, and a full line of accessories. The AcryLab models include a series of glovebox chambers with lengths of 650 mm and 1500 mm. We also take custom-built orders according to your needs.

Transparency
Acrylic is highly transparent, offering clear visibility inside the glove box. This allows operators to easily monitor and manipulate samples without distortion, which is crucial for tasks that require precision.








Advantages
▼ Manual purging
▼ All glovebox chambers made of Acrylic
▼ User friendly and simple operation
▼ Modular platform
▼ Multiple options available based on requirement
▼ Custom made glove box according to needs
Possible Applications
▼ Organometallic Chemistry
▼ Organic synthesis
▼ Hydrophilic chemical handling
▼ Medical devices
▼ Metabolic research
▼ Catalyst handling
▼ Animal testing
▼ Medicine synthesis
And More...


Model | AcryLab Mini2 | AcryLab Mini3 | AcryLab Mini4 | AcryLab Maxi2 | AcryLab Maxi3 | AcryLab Maxi4 |
Internal Sizes (width/depth/high) | 780x480x580 | 980x480x580 | 1180x480x580 | 980x830x830 | 1280x830x830 | 1480x830x830 |
External Sizes (width/depth/high) | 800x500x600 | 1000x500x600 | 1200x500x600 | 1000x850x850 | 1300x850x850 | 1500x850x850 |
Glove Ports | 2 | 3 | 4 | 2 | 3 | 4 |
Filter number | 1 to 2 | 1 to 2 | 1 to 2 | 1 to 2 | 1 to 2 | 1 to 2 |
Gloves | Neoprene | Neoprene | Neoprene | Neoprene | Neoprene | Neoprene |
Internal volume of the cabinet | 0.22m3 | 0.27m3 | 0.33m3 | 0.67m3 | 0.88m3 | 1.02m3 |
Inlet Valve | 1 | 1 | 1 | 1 | 1 | 1 |
Outlet Valve | 1 | 1 | 1 | 1 | 1 | 1 |
Pressure Gauge | 1 | 1 | 1 | 1 | 1 | 1 |
Safety Valve | 1 | 1 | 1 | 1 | 1 | 1 |
Weight | 15 Kg | 20 Kg | 25 Kg | 20 Kg | 25 Kg | 30 Kg |
Equipment | Description |
---|---|
Acrylic Box | Security levels: level 1 for users and level 2 for maintenance users. |
Glove Ports | Electronic sensor monitoring continuously air face velocity. |
Gloves | Electric device with open door alarm. |
Inlet Vale | The filters incorporate a microchip with miniUSB connection that identifies the type of filter installed, the expiry date and the serial no. |
HEPA Filter | 96 LED Tube high light intensity and low power consumption – 16 Watts / 700 Lux |
Outlet Valve | Continuous monitoring of the temperature inside the cabinet |
Pressure Gauge | To detect the level of filter saturation |
Safety Valve | 60 hours alarm |
POM Door | To program the work inside the fume hood |
Equipment | Description |
---|---|
Square Antechamber | Perfect for purge application. Comes with net and outlet and gauge. Will come with POM door. |
Tubular Antechamber | For vacuum antechamber. Will come with POM door. |
Steel Stand | Support stand in Epoxy coated steel (depending of glove box sizes) |
Vacuum Pump | Diaphragm vacuum pump up to 2mbar |
Air re-circulation system | Contact us for more details |
Feedthroughs | Uo to 4 feedthroughs can be added |
And More | Contact us for any special inquiries. |
