Polymerase Chain Reaction

PCR Cabinets

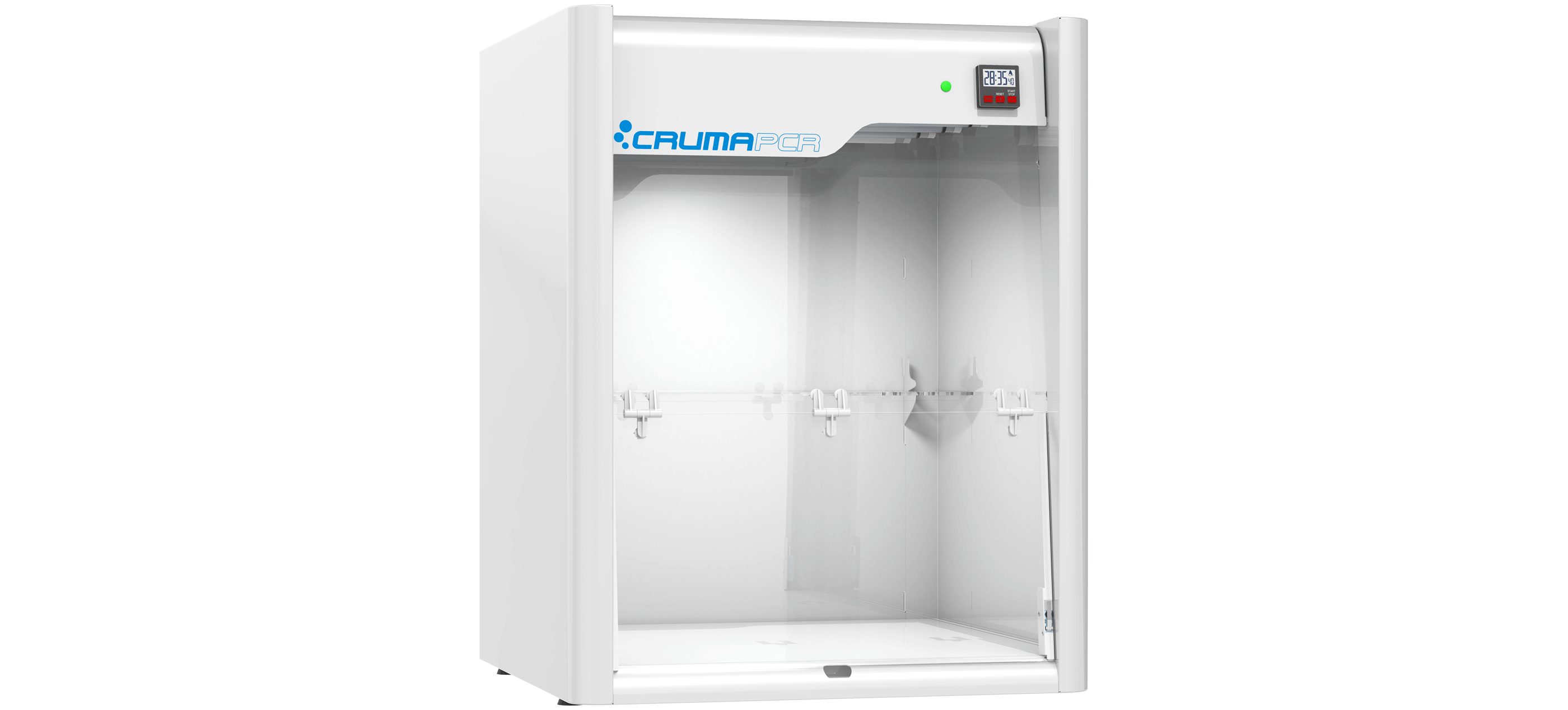

pcr-cruma-cabinet-hd-4
The Cruma PCR cabinet has been specifically designed for gene-amplification work using the PCR technique (Polymerase Chain Reaction).

A timer and three 15W UV tubes have been included to ensure the material placed inside, as well as the entire work surface, is completely sterile, thus preventing any possible cross-contamination between the DNA and RNA samples that may give rise to false-positives.

The 4mm-thick tempered glass works as a filter to protect the personnel and the environment from UV radiation. In the event the front of the cabinet is opened by accident, the UV lamps automatically disconnect to ensure the operator is fully protected.

Cutting-Edge Solutions both Inside and Out

Cruma has designed an innovative cabinet that is far different from anything else on the market and which represents a new concept in terms of laboratory material. The Cruma PCR combines a comfortable work surface with curves that soften the environment, providing a more natural appearance. It is composed of just one piece of equipment and it operates in plug&play mode, so you can get to work in just a matter of minutes.
ico-cruma-proteccion
The sample is fully protected. Completely Safe

Thanks to the three germicide UV tubes, it is possible to avoid cross- contamination between the DNA and RNA samples that may give rise to false-positives.

ico-cruma-flexibles
Flexible

It can be used in difficult access areas , such as the lower floors of buildings with narrow accesses and/or stairs, and it can be placed in different locations, which it means that it can be easily relocated if needed.

ico-cruma-ahorro
Economic Savings and Easy to Set-Up

No expensive works are necessary to install conduits to extract the gas to the outside which means there are no additional costs and no need to interrupt a laboratory working at full capacity.

ico-cruma-ahorro-energetico
Energy Savings

Unlike other brands, our cabinet reduces energy costs: uses 15 Watt germicidal tubes and LED lighting.

Advantages



▼ 3 UV germicidal lamps 15W
▼ 4mm tempered front glass
▼ Automatic disconnection of UV lamps for accidental door opening
▼ Multifunction digital timer
▼ Plug&Play: As easy as taking it out of the box and start working with it

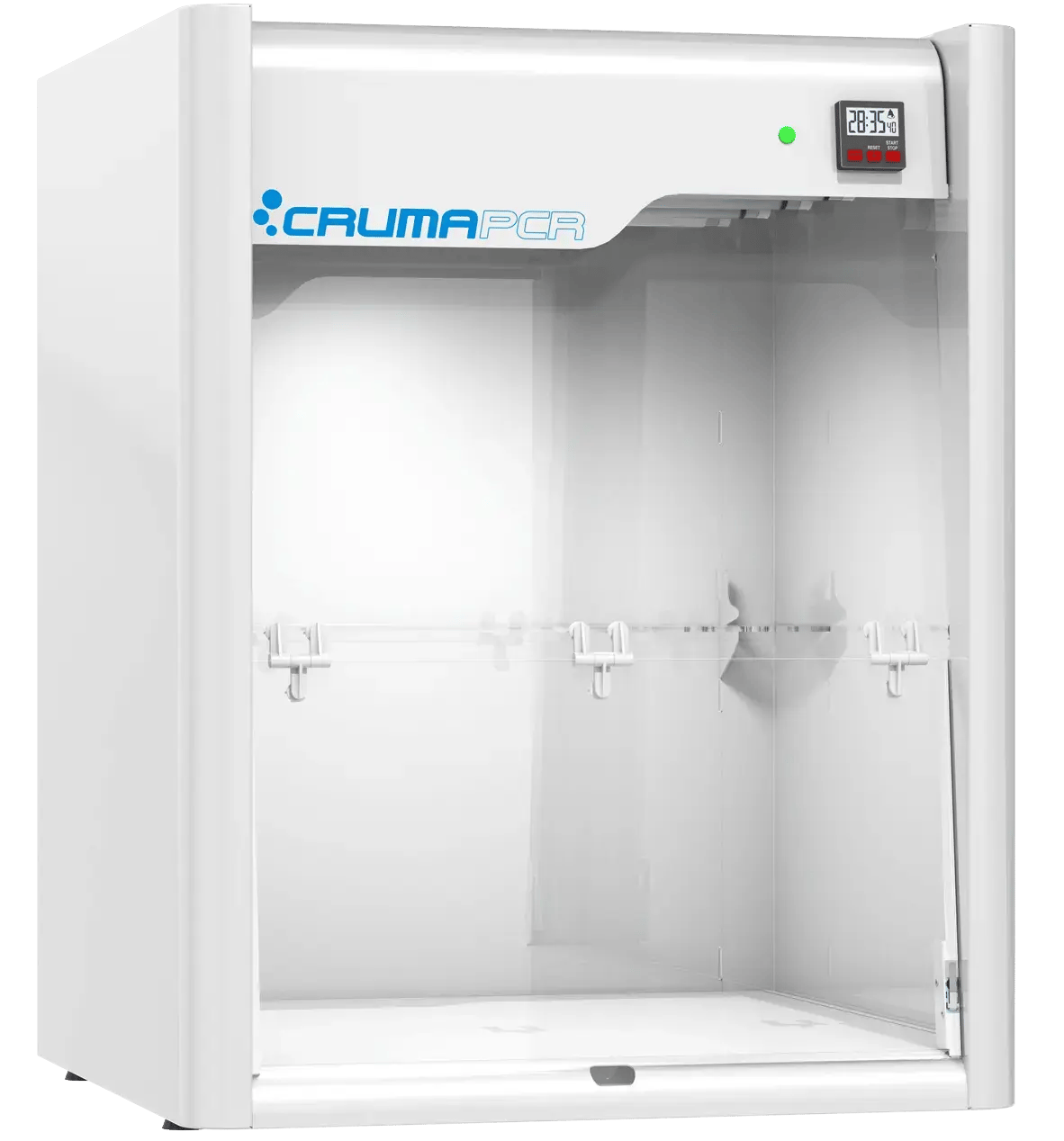

caracteristicas-12

Possible Applications



▼ DNA carr-overblocking




Models and Technical Specifications

All the essentials


  pcr-cruma-cabinet-hd-4
Model PCR
Internal Sizes (Width/Depth/High) 550x600x606
External Sizes (Width/Depth/High) 600x603x772
Cabinet interior volume 0.199m3
Total power consumption 63 W
Voltage-periods 110-220 V / 50-60 Hz
LED Lighting 900Lux / LED 16 W
UV lamp 3 x 15 W
Front opening height 280 mm
Weight 60 Kg
Packaging volume 0.4 m3
Serial Equipment
Full Equip cabinets

Equipment Description
Control panel Multifunction digital timer, switchable with UV and lighting
UV Lamp 3 UV lamps tubes of 15W
Lighting LED 16W / 900Lux
Door Tempered 4mm glass door sash
Security Security system for accidental door opening
Worktop Worktop with safety glass
Interior Interior shelf
Warranty 7 years
Optional Equipment
Details that matter

Equipment Description
Voltage-periods 125 V / 50 Hz
Support Movilair Stand table
