Glove Box Australia - Jacomex Purified Glove Box Workstations

The PURE system is laid down in three model families with modularity, extensive options and infinite customization potential.

ECO friendly from its manufacturing through lifetime operation:
Jacomex produces 70% of its electricity consumed to manufacture the gloveboxes via solar panels installed on the roof of it plant. The rest of electricity we consume comes from 90+% low emission sources (Nuclear, Solar, hydro…)

A glovebox system as silent as a desktop computer, Yes please!
Jacomex puts its ears where its mouth is, our system regulates the inner pressure of the glovebox through its gas purifier and a mechanical and silent valve. The only reason we need a vacuum pump for is the antechambers uses, also meaning way less and tear wear on these systems.

PureSmart_Jacomex-e1736160756841-1000x720

Operation principles

Purified Glovebox Operation Principles

Inert atmosphere in a glovebox is in most instance consisting of Argon (Ar), Nitrogen (N2) or Helium (He) gas, that requires to be Oxygen (O2) and Moisture (H2O) free (less than 1ppm of O2 and les than 1ppm of H2O).

To reach and maintain these purity values, a set of quality requirements, and technological solutions are implemented:

From a quality standpoint, the glovebox has a controlled leak-tightness (preferably ISO 10648-2 class 1)
From a technical solution view, the glovebox enclosure is connected to a gas purifier that circulates the glovebox’s gas through O2 and H2O absorption reactors in a closed loop.
To monitore and control the atmosphere purity within the glovebox enclosure, Jacomex uses OEM and top brand sensors, particularly sensitive to trace concentrations
In case of Solvents being used in the glovebox, which tend to react, and potentially damage the purification reactor beds, Solvent trapping solutions are installed in the gas circulation circuit before the Solvent vapors reach the analyzers or the gas purifier reactors, thus protecting the installation from premature wear and replacement of the beds.

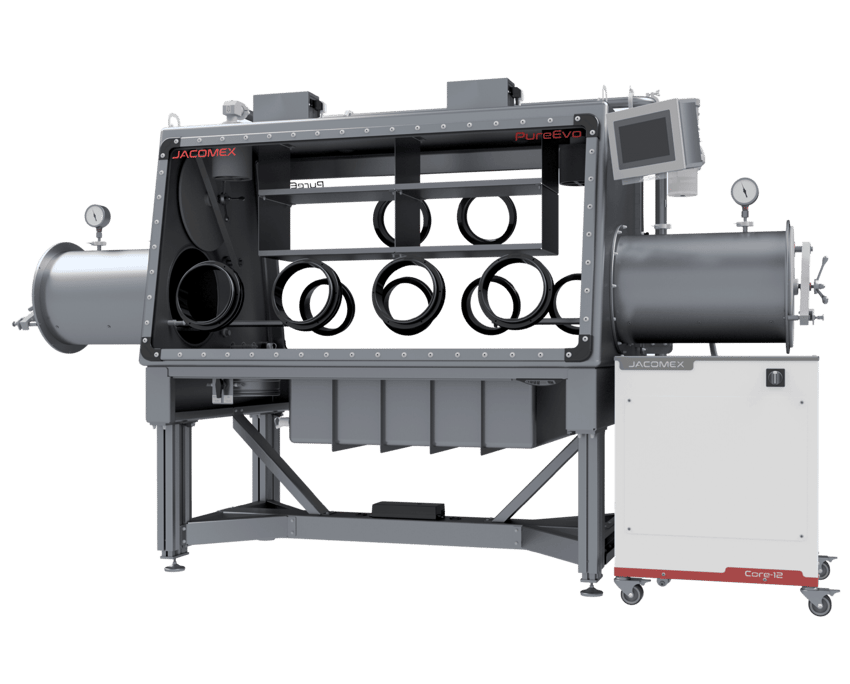

PureEvo Glovebox - State of the art purified glovebox fitted for most demanding applications

A fully customizable Glovebox system meeting highest expectations, designed to integrate complex processes and third party systems. <1ppm O2 and H2O

Standalone closed loop gas purification system Core 12 (and up)

Maintain O2 and H2O <1 ppm
Available in 6 standard sizes + infinite customization potential, single sided, double sided and more
Working gases: Nitrogen or Argon
Positive or Negative relative pressure operation
(optional) Ventilation containment breach operator & environment safety features
(Optional) Rounded corners for optimized cleanability and de-contaminability
