    G[Mega] Glove Box Workstation
    g-mega-modex-box-3d-glove-box
    Screenshot 2023-03-12 at 3.57.33 pm
    Left Side Banner1
    Left Side Banner2
    picto_iso10648-2
    Jacomex-Made-in-France[99]

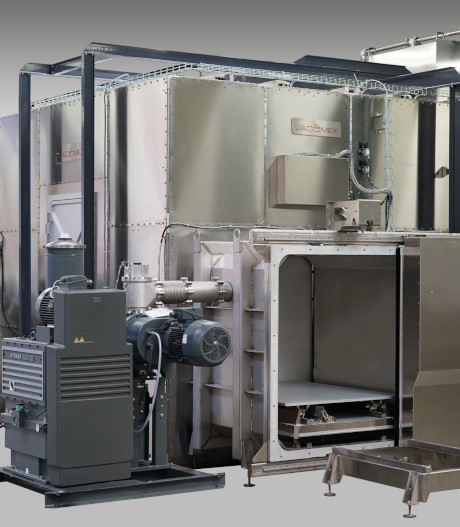

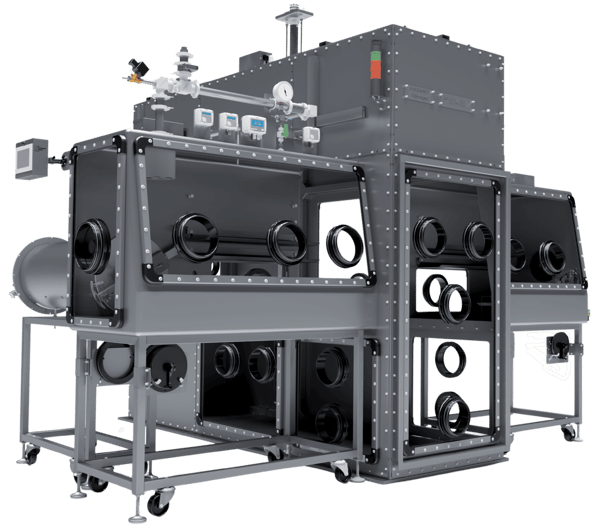

    G(Mega) is a containment system exclusively made to measure and developed by our R&D department for all industrial applications and production..

    It is fully modular and designed to reach volumes up to 150m3 and facilitates the integration of robots and process machines.

    Already in service in sectors such as additive manufacturing and aeronautics, it is suitable for all industrial processes which must be carried out under controlled atmosphere.

    P(Sys)-IV systems are neutral gas purification units particularly suitable for G(Mega) because of their great ability to eliminate moisture and oxygen.

    APPLICATIONS

    picto-jacomex-industrie

    0

    DIMENSIONS

    modele-boite-gants-g-mega

    ADVANTAGES
    Based on Meccano® system, robust, dedicated to industrial  manufacturing
    Combinable elements: can yield endless custom solutions  based on standard components
    Easy-removable mechanical design for:
         • fast and easy maintenance of internal production machines and tools
         • installations relocation
         • components recycling in case of reconfiguration or extension




    POSSIBLE APPLICATIONS...
     Additive Manufacturing
     Aeronautics
     Integration of industrial robots
     Machines and processes securing under reducing atmosphere
     Cowling of installations or assembly-lines under anti-oxidizing and/or low-hygrometry atmosphere

    TECHNICAL DATA
    Tightness class 1 according to ISO 10648-2 compatible with purified inert atmospheres
    Stainless steel profiles X2CrNi18-9 (US 304 L)
    All dimensions by 100 mm increments in all 3 dimensions
    Volumes until 150m3 – Unlimited lengths
    EPDM gaskets
    Panels: polymer – mineral laminated glass – stainless steel
    Access and transfer: vacuum chamber, doors, hatches, intervention airlock...



    g-mega-modex-box-3d-glove-box
