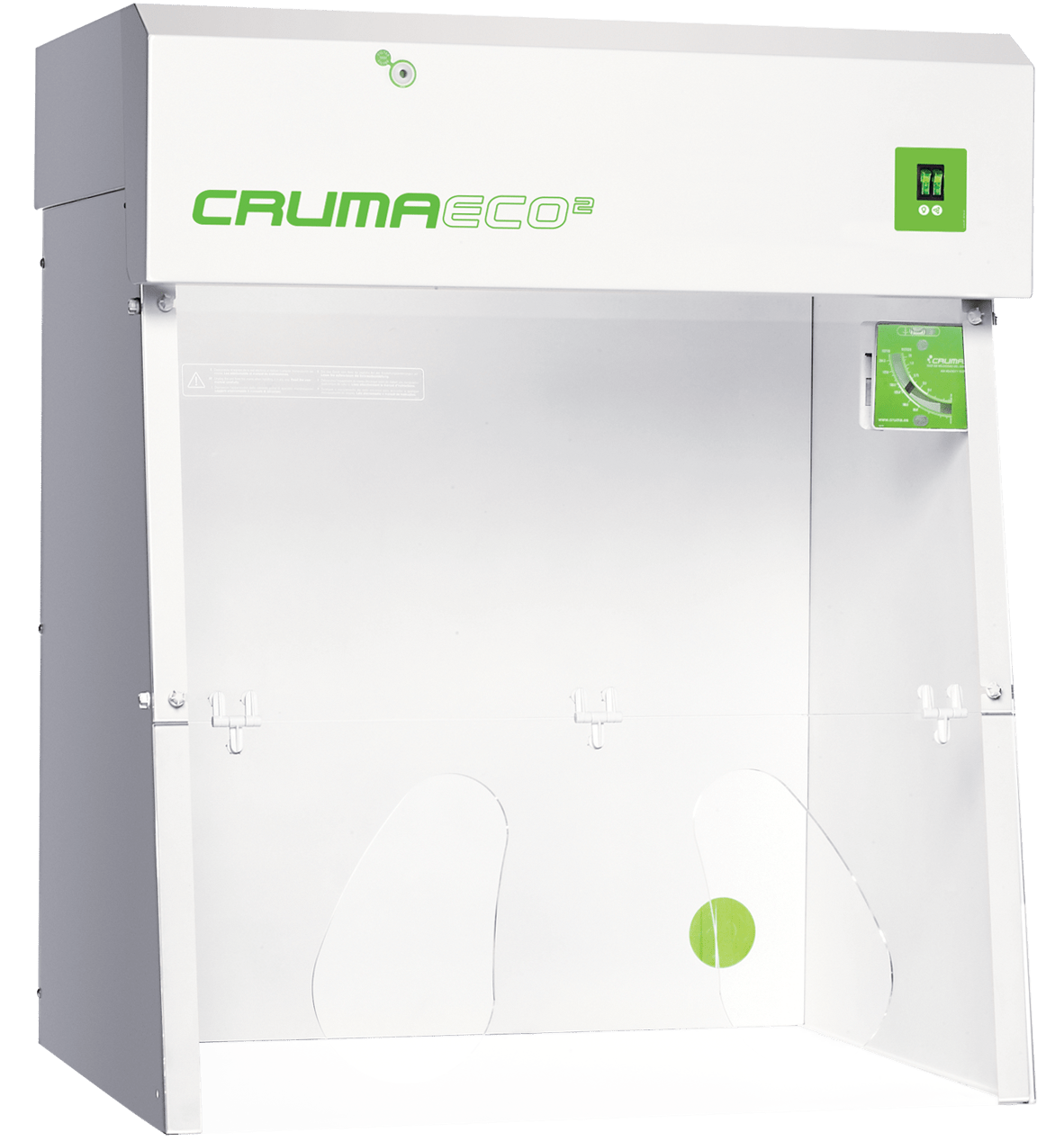

Glove Box Australia - Ductless Fume Hood

A ductless filtration fume hood created in response to a market that demands new products, but which is not willing to compromise on features, functions or quality. Our R+D+i department developed this model based on two fundamental premises: Economy and Ecology. Hence the name. A product that respects both the environment and the most demanding user. It is within this frame of action that the gas filtration fume hood ECO2 was born.

ECO2 underwent the same safety tests and controls as the rest of the ductless filtration fume hoods, responding to the stringent demands of our customers which all Cruma products offer.

Models and Technical Specifications

Economy & Ecology in the same cabinet

	Buy Online!
Model	ECO2
Internal Sizes (width/depth/high)	778x569x760
External Sizes (width/depth/high)	798x600x1012
Filtration columns	1
Filter number	1 a 2
Fans	1
Average volume of treated air/hour	1757 m3/h
Average face velocity	0.50 m/s
Internal volume of the cabinet	0.287m3
Renewals inside the cabinet / min.	9 ren./m
Total electrical power consumption	47 W
Voltage-Frequency	110-220 V / 50-60 Hz
LED light intensity	900 Lux
UV Lamp	-
Noise level	50 dB
Weight	65 Kg
Packaging volume	0.42 m3

Serial Equipment

Full Equip cabinets

Equipment	Description
Electronic anemometer device	Mechanical probe for continuous control of air velocity in facade
Filter control	Detection system of the filter saturation
Illumination	Integrated LED lighting
Warranty	2 years

Equipment	Description
Base Pack ECO2	Spill retention tray (2-10 liters) with working surface in white tempered glass or inox steel

Filter type	Description
Type A	For organic vapors such as ketones, ethers, alcohols, xylenes… Eventually it can be used for inorganic acids, but only if used in small quantities because this activated carbon is not impregnated and the excess of acid vapors could saturate it quickly.
Type BE	For inorganic acid vapors as H2SO4, HCl, HNO3, and volatile sulfur compounds such as H2S, SO3, … It can be used with organic vapors because the activated carbon incorporates impregnation of metal compounds and neutralizing salts. It is also suitable to filter organic and inorganic compounds when they are in similar proportions.
Type F	For formaldehyde vapors and derivatives; also good for other organic compounds. Carbon impregnated with Cu leads, so that it should never be used with inorganic acid vapors.
Type K	For NH3 vapors and amines; also good for other organic compounds. Carbon with metal salt complexes impregnation.
Type ABEK	Mixed type to be used when the ratios between organic, inorganic and NH3/amines are similar.
Type D	HEPA H-14 filter (High Efficiency Particulate Air, according to EN-1822: 1998) for filtering dust and smoke particles.

Modular filtration column
for gases and particles (according to NFX 15-211:2009)

CLASS 2		CLASS 1
Type G Handling of liquid compounds/products		Type 2G Liquid compounds/products handling with security molecular filter
Type GS Handling of liquid and particles compounds/products		Type 2GS Liquid and particles compounds/products handling with molecular security filter
		Type 2GD Handling of liquid compounds in clean room with molecular security filter
